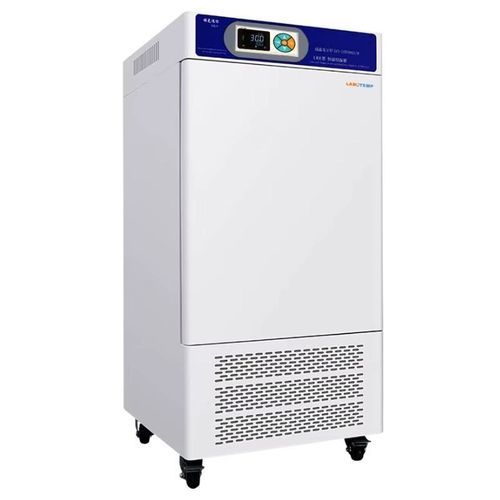

Climate chamber THC-02

humiditytemperatureanalysis

Overview
Labotemp Temperature and Humidity Chamber THC-02 is a constant temperature and humidity environmental test chamber designed for precise control in laboratories and industrial testing. Capacity: 100 L. Temperature range: 0–65°C (H~90°C noted); humidity control: 40%–95% RH. SUS304 stainless steel inner chamber, balanced refrigeration and intelligent PID control deliver stable, uniform conditions for stability testing, R&D and quality control.

Key benefits

• Accurate environmental control suitable for stability and validation tests.
• Designed to meet ISO and CE requirements for repeatable results.
• Integrated humidification and uniform airflow to maintain long-term test conditions.

Features

• Auto-defrost system for uninterrupted operation
• Intelligent PID control for precise temperature and humidity regulation
• Balanced refrigeration with low fluctuation
• Eco-friendly fluorine-free refrigerant
• SUS304 stainless steel inner chamber with adjustable shelves
• Built-in intelligent humidification with automatic water refill
• Uniform air circulation for consistent test conditions
• LCD controller with RS485 interface and over-temperature alarm
• Double-door design with interior lighting
• Brand compressor for reliable long-term operation

Applications

• Pharmaceutical and stability testing
• Scientific research and environmental simulation
• Electronics testing and component qualification
• Agriculture, livestock and aquaculture studies
• Bioengineering, water analysis and industrial product testing

Optional accessories

• Printer
• Test hole / sampling port
• Communication software

Specifications
Temperature Range : 0–65 / H~90℃
Volume : 100 L
Power : 0.6 kW
Voltage : 220V 50Hz
Inner Size (H×W×D) : 580×450×380 mm
Overall Dimension (H×W×D) : 1100×590×620 mm
Accuracy : ±0.1℃
Volatility : ±0.5%
Humidity Range : 40%–95% RH
Humidity Fluctuation : ±2%
Timing Range : 0–999 M/H
Packing Size (H×W×D) : 1220×670×700 mm
Net Weight : 83 kg
Gross Weight : 100 kg


Technical specifications

• Model: THC-02
• Temperature range: 0°C to 65°C (H~90℃ indicated)
• Humidity range: 40%–95% RH
• Control: Intelligent PID control, LCD controller with RS485
• Temperature accuracy: ±0.1°C
• Humidity fluctuation: ±2%
• Temperature volatility: ±0.5%
• Usable volume: 100 L
• Inner size (H×W×D): 580×450×380 mm
• Overall dimension (H×W×D): 1100×590×620 mm
• Power: 0.6 kW
• Voltage: 220V 50Hz
• Timing range: 0–999 M/H
• Construction: SUS304 stainless steel inner chamber with adjustable shelves
• Refrigerant: Eco-friendly fluorine-free refrigerant
• Additional: Auto-defrost, built-in intelligent humidification with automatic water refill, uniform air circulation, double-door with interior lighting
• Packing size: 1220×670×700 mm
• Net weight: 83 kg; Gross weight: 100 kg
