Vortex laboratory mixer LVM-01

analogclinicalfor teaching

Product overview

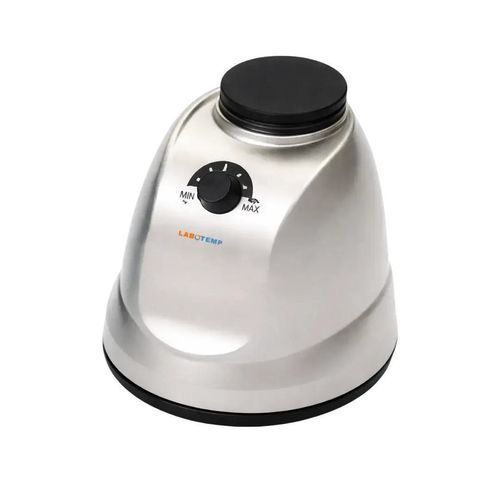

Labotemp Mini Vortex Mixer LVM-01 is a compact benchtop vortex mixer for rapid, uniform mixing of small liquid samples. It produces a stable circular motion suitable for mixing reagents, buffers, DNA/RNA, PCR reagents and biological samples in centrifuge tubes and test tubes up to 15 ml. Designed for clinical laboratories, biotechnology facilities, research labs and teaching laboratories for routine sample preparation and diagnostic workflows.

Key functional details
The unit operates with a 3 mm orbit and an adjustable speed range of 800–2500 rpm, enabling controlled vortexing for different sample volumes and viscosities. It supports touch (jog) mode for short pulses and continuous mode for extended mixing. Compatible with centrifuge tubes and test tubes up to 15 ml; power supply DC 6V provides stable operation and low heat generation.

Features

• Compact benchtop design with small footprint for limited laboratory space
• Adjustable speed: 800–2500 rpm for process control
• Dual operation modes: touch (jog) and continuous
• Stable circular motion with 3 mm orbit for reproducible mixing
• Suitable for tubes up to 15 ml; lightweight (net weight 0.35 kg) for easy handling

Applications

• Mixing reagents, buffers, DNA/RNA and PCR reagents prior to analysis
• Preparation and resuspension of blood, serum and plasma samples for diagnostic testing or centrifugation
• Resuspension of microbial cultures and preparation of media for microbiological analysis
• Routine sample mixing in clinical, research and teaching laboratories

Technical specifications

• Orbit diameter: 3 mm
• Speed range: 800–2500 rpm
• Motion type: circular motion
• Power supply: DC 6V
• Net weight: 0.35 kg
• Gross weight: 0.45 kg
• Working modes: continuous / touch (jog)
• Suitable tube size: centrifuge tubes & test tubes up to 15 ml
• Dimensions (L × W × H): 74 × 91 × 84 mm
