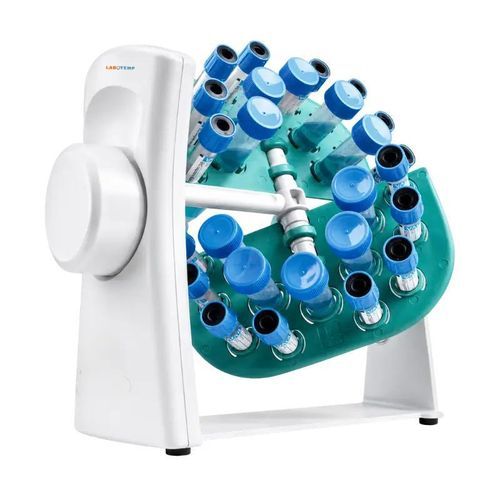

Three-dimensional laboratory shaker LVM-04

3Drotarydigital

Product Overview
Labotemp Tube Rotator LVM-04 is a 3D rotating mixer designed to provide gentle, uniform mixing of biological and chemical samples through continuous multi-angle rotation. It supports rotation, shaking and angle-mixing modes and is suitable for blood sample preparation, molecular hybridization, immunoprecipitation, cell suspension, protein extraction and biochemical assays.

Key Performance and Operational Features

• Three mixing modes: Rotation, Shaking, Angle Mixing.
• Adjustable speed range: 10–40 rpm.
• Oscillation amplitude: 20–99°.
• Working modes: Continuous or Timed operation.
• Programmable timing: 1–999 minutes or 0–999 seconds; continuous operation supported.
• LED display for parameter monitoring and adjustment.
• Memory function stores last speed and angle settings for recall after restart.
• Interchangeable tube clamps and modular tube holder system for rapid reconfiguration between tube sizes.
• Compact footprint suitable for laboratory benches, incubators and cold rooms.
• Low-power, quiet motor for stable mixing motion to protect delicate samples.

Applications

• Blood sample preparation and routine sample incubation workflows.
• Molecular biology procedures including hybridization.
• Immunoprecipitation and protein extraction protocols.
• Cell suspension preparation and general life-science research mixing needs.
• Suitable for pharmaceutical, biotechnology, hospital, academic and quality control laboratories.

Additional Features

• Durable multi-angle swivel frame allowing horizontal, vertical or inclined rotation to optimize mixing for different applications.
• Interchangeable tube clamps accommodate multiple tube sizes for flexible sample handling and quick loading/cleaning.
• Compact design enables convenient operation in temperature-sensitive workflows.
• Designed to provide gentle, controlled motion to preserve delicate biological samples and support reproducible experimental results.

Caractéristiques / spécifications techniques

• Speed Range: 10–40 rpm
• Oscillation Amplitude: 20–99°
• Movement Mode: Rotation / Shake / Angle Mixing
• Working Mode: Continuous / Timed
• Timing Range: 1–999 min / 0–999 s
• Applicable Tube Sizes: 0.5 ml, 1.5 ml, 2 ml, 5 ml, 7 ml, 10 ml, 15 ml, 50 ml
• Tube Clamps: Interchangeable tube clamps for multiple tube sizes
• Display: LED Display
• Memory Function: Stores the last speed and angle settings
• Mixing Modes: Rotation Mixing, Shaking Mixing, Angle Mixing
• Power Supply: 100–240 V AC, 50/60 Hz
• Power Consumption: 4 W
• Dimensions (L × W × H): 240 × 140 × 210 mm
• Gross Weight: 5.8 kg
• Package Size: 340 × 250 × 280 mm
