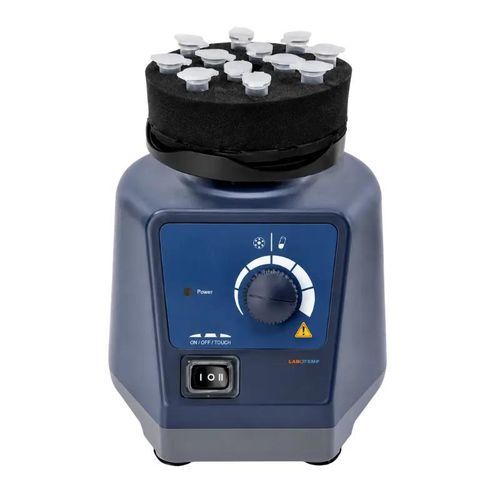

Vortex laboratory mixer LVM-03

orbitalanalogclinical

Product overview
The Labotemp Vortexing Machine LVM-03 is a compact laboratory vortex mixer engineered for fast, repeatable mixing of small-volume samples. It delivers a 4 mm orbital motion with an adjustable speed range of 0–3000 rpm and supports both touch (pulse) and continuous operation modes, making it suitable for short agitation steps as well as extended workflows in clinical, diagnostic and research laboratories.

Key features

• Variable speed control: 0–3000 rpm for precise adaptation to sample type.
• Dual operation modes: touch activation (pulse) and continuous run for flexible workflows.
• Stable orbital mixing: 4 mm orbital diameter for rapid, uniform homogenization of test tubes and small vessels.
• Durable shaded-pole motor: low-vibration, low-maintenance drive suitable for routine lab use.
• Standard VT1.1 cup head: accommodates tubes and small vessels up to 30 mm diameter.
• Compact benchtop footprint: optimized for limited laboratory space.
• Easy-to-use rotary speed knob with clear scale.
• Designed for continuous laboratory operation, protection class IP20.

Typical applications

• Mixing reagents, buffers, biological specimens, chemicals and diagnostic samples in clinical, microbiology, molecular biology, biotechnology and pharmaceutical settings.
• Sample preparation for PCR and assay workflows, quality control testing and routine analytical tasks.
• Educational laboratory exercises and general-purpose mixing of test tubes and small vessels (≤30 mm diameter).

Specifications
Mixing performance:
Mixing motion: Orbital
Orbital diameter: 4 mm
Speed range: 0–3000 rpm
Speed indicator: Scale
Operating mode: Touch (pulse) / Continuous

Electrical parameters:
Power supply: 220V 50Hz
Power consumption: 60 W

Drive system:
Motor type: Shaded-pole motor
Motor input power: 58 W
Motor output power: 10 W

Environmental conditions:
Operating ambient temperature: 5–40°C
Maximum relative humidity: 80% RH
Dimensions (W × H × D): 127 × 130 × 160 mm
Net weight: 2.0 kg
Gross weight: 2 kg
Package size: 130 × 130 × 160 mm
