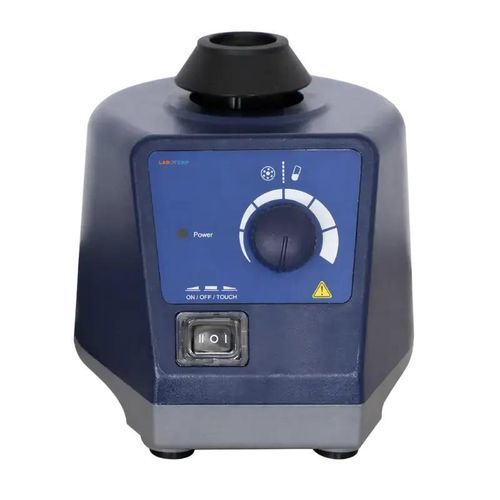

Vortex laboratory mixer LVM-02

analogclinicalfor microbiology

Product Overview
Labotemp Mini Vortex Mixer LVM-02 is a compact and efficient mini vortex designed for rapid and consistent mixing of samples in laboratory environments. This mini vortex mixer delivers smooth orbital motion with a 4 mm mixing diameter, ensuring effective blending of reagents, cells, and solutions in microtubes and small containers. With a variable speed range from 0 to 2500 rpm, it provides precise control for different mixing intensities. Built for durability and ease of use, this vortex mini features touch operation and continuous mode, robust aluminum-cast construction for enhanced stability, and vacuum suction feet to reduce vibration during high-speed mixing. Its reliable motor system ensures consistent performance with low energy consumption, making it practical for routine laboratory mixing tasks.

Key Features

• 2500 RPM Control
• Dual operation modes for instant (touch) and extended (continuous) use
• Adjustable speed control up to 2500 rpm for varied mixing requirements
• Compact structure suitable for space-saving laboratory setups
• Stable operation ensured by anti-slip suction base design
• Durable housing with high-quality material construction
• Clear scale-based speed indication for easy monitoring
• Low power consumption with efficient motor performance
• Suitable for mixing small-volume samples in tubes and vials
• Simple control interface for quick and convenient operation

Applications

• Used for rapid mixing of small-volume samples in microtubes and vials in microbiology, biochemistry, and clinical labs
• Suitable for reagent preparation, cell suspension, and sample homogenization
• Ideal for routine research, diagnostic workflows, and academic experiments requiring controlled, low-volume vortex mixing

Technical specifications

• Voltage : 220V 50Hz
• Power : 60W
• Mixing Motion : Orbital
• Orbital Diameter : 4 mm
• Motor Type : Shaded pole motor
• Motor Rating (Input) : 58W
• Motor Rating (Output) : 10W
• Speed Range : 0–2500 rpm
• Speed Display : Scale
• Run Type : Touch operation / Continuous
• Dimensions (W × H × D) : 127 × 130 × 160 mm
• Permissible Ambient Temperature : 5–40°C
• Permissible Relative Humidity : 80% RH
• Package Size : 290x240x220mm
• Net Weight : 2kg
• Gross Weight : 3kg

Technical details

• Model: LVM-02
• Brand: Labotemp
• Voltage: 220V 50Hz
• Power consumption: 60W
• Motor type: Shaded pole motor (58W input / 10W output)
• Mixing motion: Orbital, orbital diameter 4 mm
• Speed range: 0–2500 rpm with scale display
• Run modes: Touch operation and Continuous
• Dimensions (W×H×D): 127 × 130 × 160 mm
• Operating ambient: 5–40°C, up to 80% RH
• Package size: 290 × 240 × 220 mm
• Net weight: 2 kg; Gross weight: 3 kg
