Circular laboratory mixer LVM-06

oscillatingvortexorbital

Product overview

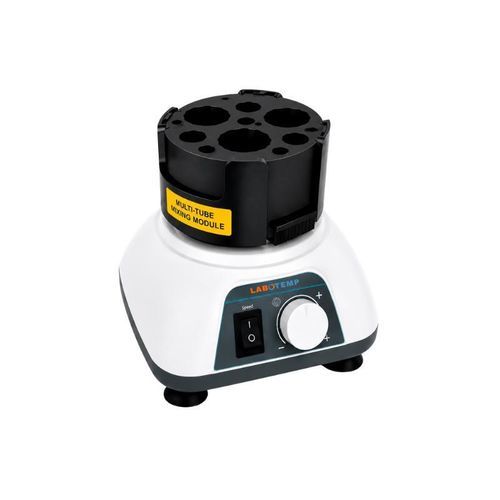

Labotemp Multi-function Vortex Mixer LVM-06 is a compact benchtop vortex mixer designed for fast, uniform mixing of biological samples, reagents and laboratory solutions. Equipped with a maintenance-free brushless DC motor and a 4.5 mm orbital motion, it offers smooth, low-noise operation with two operating modes (Touch and Continuous) and adjustable speeds up to 3000 rpm. The intuitive LCD interface provides precise speed and programmable timer control (1 minute to 8 hours). The interchangeable module system makes the unit adaptable to test tubes, centrifuge tubes, blood collection tubes, flasks, microplates and cell culture plates for varied laboratory workflows.

Key benefits

• Versatile multi-module system for rapid changeover between sample holders and formats.
• High-performance mixing: up to 3000 rpm and 4.5 mm orbital motion for fast, reproducible results.
• Digital control and programmable timer enable consistent, unattended operations tailored to clinical and research protocols.

Features

• Two operating modes: Touch and Continuous Run.
• Brushless DC motor for low maintenance and quiet operation.
• Speed ranges: 0–3000 rpm (Touch), 200–3000 rpm (Continuous).
• Digital LCD display with push-button controls for precise speed and timer settings.
• Programmable timer: 1 minute to 8 hours for repeatable procedures.
• 4.5 mm orbital motion for efficient vortex mixing.
• Compatibility with vortex cup, multi-tube racks, microplate platform and other interchangeable accessories.
• Compact low-profile design to minimize vibration and maximize bench stability.
• IP21 protection rating for safe laboratory use.
• Universal AC 100–240 V power supply; DC 12 V / 2 A adapter; 20 W power consumption.

Applications

• Clinical diagnostics
  Mixing of blood, serum, plasma, urine and diagnostic reagents for routine testing and sample prep.
• Molecular biology
  Homogenization and mixing of DNA/RNA, PCR reagents, enzymes and buffers.
• Pharmaceutical & biotechnology
  Reagent preparation, cell suspensions, sample homogenization and QC processes.
• Microbiology
  Efficient mixing of cultures, media and staining reagents.
• Research & academic laboratories
  Consistent mixing for experiments, analytical testing and teaching labs.
• Environmental & food testing
  Sample preparation for water, soil and food analysis.
• Quality control laboratories
  Standardized vortex mixing for reliable sample prep and product testing.

Optional modules

• LVM06-1: Universal cup for individual test tubes and microtubes.
• LVM06-2: Flat platform for flasks, reagent bottles and multiple containers.
• LVM06-3: Blood collection tube module, holds 21 × Ø12 mm tubes.
• LVM06-4: Centrifuge tube module for 12 × 5 mL or 15 mL tubes.
• LVM06-5: Combination module for 4 × 50 mL or 5 × 5/15 mL tubes.
• LVM06-6: High-capacity module for 96 × 0.2 mL tubes or one 96-well plate.
• LVM06-7: Multi-tube module for 20 × 0.5 mL and 30 × 1.5/2.0 mL tubes.
• LVM06-8: Cell culture plate module for standard culture plates.

Technical specifications

• Product type: Multi-function vortex mixer
• Operating modes: Touch / Continuous Run
• Speed (Touch): 0–3000 rpm
• Speed (Continuous): 200–3000 rpm
• Speed adjustment: Variable
• Orbital motion: Circular oscillation
• Orbital diameter: 4.5 mm
• Timer range: 1 minute to 8 hours
• Control: Digital LCD display with push buttons
• Compatible platforms: Vortex cup, multi-tube rack, microplate platform and other attachments
• Noise level: Low
• Dimensions (W × D × H): 360 × 210 × 150 mm
• Motor: Brushless DC motor
• Input voltage: AC 100–240 V, 50/60 Hz
• Power adapter: DC 12 V / 2 A
• Power consumption: 20 W
• Protection class: IP21
• Construction: Compact low-profile benchtop design
• Packaging dimensions (W × D × H): 150 × 150 × 76.5 mm
