Humidity tester BTY-B3P

pressuretemperaturegas permeability

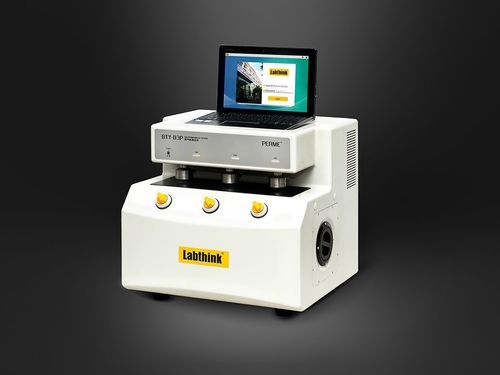

The BTY-B3P Gas Permeability Tester is a laboratory instrument based on the differential pressure method, designed for the determination of gas permeability of battery diaphragms, breathable films and related polymer products. It delivers automated testing with real-time pressure curve display and environmental monitoring.

Product features

• Computer-controlled instrument with automated test sequences
• Touchscreen interface for straightforward operation
• Imported high-precision pressure sensors ensuring measurement accuracy and repeatability
• Imported pneumatic control system with ultra-low failure rate to maintain system sealing performance
• Real-time monitoring and recording of ambient temperature and humidity
• Simultaneous testing of up to three equivalent specimens with averaged result reporting
• Real-time pressure curve display for observation and analysis of the permeation process
• Unit conversion function to meet special test requirements
• Available customizations for special test functions, specimen size or test pressure

Test principle
Under controlled temperature and humidity conditions, a constant differential gas pressure is applied across the specimen. Gas transmission rate and related parameters are calculated by analyzing pressure changes on the low-pressure side.

Test standards

• ISO 5636
• SJT 1071.9
• GB/T 36363-2018

Applications

• Determination of gas permeability for battery diaphragms, breathable films and other related polymer products

Configurations

• Standard configuration: instrument, professional software, Φ4 mm PU tubing (2.5 m)
• Note: gas supply (test gas) is not included and must be provided by the customer

Characteristics / technical specifications

• Model: BTY-B3P
• Test range: 10 ~ 10,000 s/in² · 100 mL · 1.21 KPa
• Pressure range: 0 ~ 20 KPa (customizable)
• High-pressure resolution: 0.01 KPa
• High-pressure accuracy: ±0.05 KPa
• Low-pressure resolution: 0.1 Pa
• Low-pressure accuracy: ±0.3 Pa
• Minimum specimen size: ≥ 12 mm × 12 mm
• Test area (standard): 0.019 sq.in. (12.56 mm²) — other areas customizable
• Number of specimens: 3, 2 or 1
• Test gases: O2, N2, CO2 and 99.9% dry gas (gas supply excluded)
• Gas supply pressure: 0.6 MPa (87 psi)
• Port size: Φ4 mm PU tubing
• Power supply: 220 VAC ±10% 50 Hz / 120 VAC ±10% 60 Hz
• Instrument dimensions (L×W×H): 390 mm × 433 mm × 410 mm
• Net weight: 27 kg
