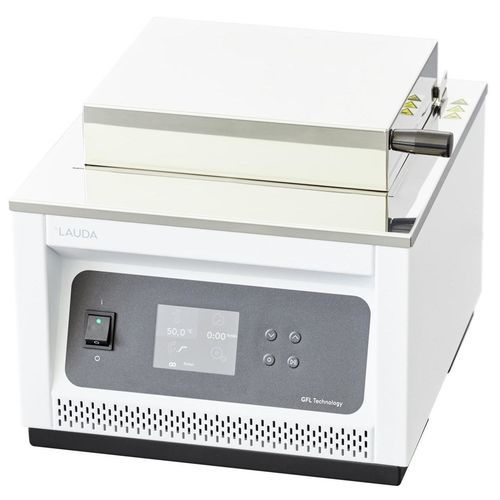

Scientific research water bath Hydro H 8

thermostaticheatingmicroprocessor-controlled

Product description
LAUDA Hydro water baths are stainless-steel laboratory units designed for precise temperature control in research and industrial laboratories. The Hydro H 8 model covers a bath volume range of 3.8–7.0 L and provides stable operation from 25 °C to 100 °C with temperature constancy of ±0.1 K. A TFT colour display and membrane keypad enable intuitive control and clear readout in °C/°F.

Features

• Compact stainless-steel water bath for laboratory applications
• Timer with hours and minutes settings; three application-specific timer modes
• Adjustable over- and under-temperature alarm thresholds up to ±10 K
• Optical and acoustic alarms for low liquid level and temperature deviations
• Heat-insulating, double-walled stainless-steel lid with inner curvature to reduce condensation
• TFT colour display showing setpoint and process values; switchable °C/°F
• Membrane keypad with clear symbols and digital setpoint adjustment (0.1 °C increments)
• Sensor break/short-circuit detection and electronic controller monitoring
• Bath vessel with drain valve; standard perforated floor and lid included

Working range
Min. working temperature: 25 °C
Max. working temperature: 100 °C
Temperature stability: ±0.1 K

Technical data (according to DIN 12876)
Working temperature range: 25 ... 100 °C
Ambient temperature range: 10 ... 40 °C
Temperature stability: ±0.1 K
Heater power (max.): 1 kW
Bath volume (H 8): min. 3.8 L / max. 7.0 L
Dimensions (WxDxH): 340 x 395 x 275 mm
Weight: 10 kg
Power supply: 230 V, 50/60 Hz; power cord with angled plug (CEE7/7)

Accessories (examples)

• Insert racks and accessories for sample organisation (various models available)

Technical specifications

• Model: Hydro H 8
• Bath volume range (Hydro line): 4 to 41 L (product line information)
• Working temperature range: 25 to 100 °C
• Temperature constancy: ±0.1 K
• Heater power (max.): 1 kW
• Bath volume (H 8): 3.8–7.0 L
• Dimensions (WxDxH): 340 x 395 x 275 mm
• Weight: 10 kg
• Power supply: 230 V, 50/60 Hz; angled plug (CEE7/7)
• Materials: bath interior, cover, sieve plate and heating element in stainless steel
• Display/control: TFT colour display; membrane keypad; °C/°F; digital setpoint; timer functions; alarms for over/under temperature and low liquid level
