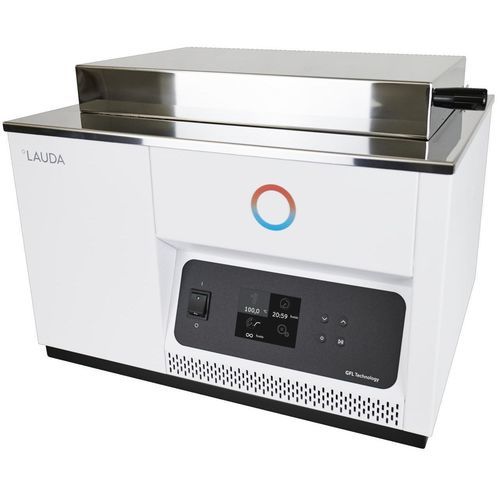

Heating water bath Hydro H 22

thermostaticcompactbenchtop

Product description
LAUDA Hydro water baths are stainless-steel laboratory water baths designed for precise temperature control in applications from routine heating to boiling-range processes. Available bath volumes and a compact footprint make the Hydro H 22 suitable for laboratories requiring stable temperatures and straightforward operation.

Features

• Simple-to-operate water bath with digital setpoint adjustment
• Timer adjustable in hours and minutes; three application-specific timer modes
• Adjustable over- and under-temperature alarm thresholds up to ±10 K with optical and acoustic alert
• TFT colour display with clear presentation of process data; temperature display selectable in °C/°F
• Membrane keypad with clear symbols and digital 0.1 °C increment setting
• Electronic monitoring for sensor break/short-circuit and controller status
• Stainless-steel bath interior, cover, perforated floor and heating element; heat-insulating double-walled lid
• Design prevents condensate from dripping into vessels; bath with drain valve

Working range

• Minimum working temperature: 25 °C
• Maximum working temperature: 100 °C
• Temperature stability (constancy): ±0.1 K

Technical data (according to DIN 12876)
Working temperature range: 25 ... 100 °C
Ambient temperature range: 10 ... 40 °C
Temperature stability: ±0.1 K
Heater power max.: 1.5 kW
Min. / max. bath volume: 7.5 / 20.3 L
Dimensions (WxDxH): 500 x 440 x 345 mm
Weight: 16 kg
Power supply: 230 V; 50/60 Hz
Power plug: Power cord with angled plug (CEE7/7)

Technical characteristics

• Model / Part no.: Hydro H 22 / L002903
• Working temperature range: 25 ... 100 °C
• Temperature stability (constancy): ±0.1 K
• Heater power (max.): 1.5 kW
• Bath volume (min./max. for model): 7.5 / 20.3 L
• Overall dimensions (WxDxH): 500 x 440 x 345 mm
• Weight: 16 kg
• Power supply: 230 V; 50/60 Hz (power cord with angled plug CEE7/7)
