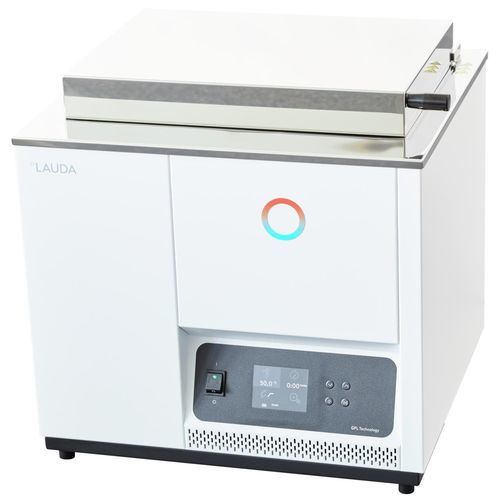

Heating water bath Hydro H 41

thermostaticmicroprocessor-controlledbenchtop

Product description
LAUDA Hydro water baths made of stainless steel provide suitable bath depth and opening for a variety of laboratory and industrial applications, with bath volumes ranging up to 41 litres. Units offer an operating temperature range up to 100 °C and a temperature constancy of ±0.1 K, enabling use in boiling-range applications. A TFT colour display allows intuitive operation with temperature readout in °C and °F.

Features

• Easy-to-operate water bath
• Timer adjustable in hours (h) and minutes (min)
• Adjustable over- and under-temperature alarm points up to ±10 K
• Optical and acoustic alarms for low liquid level and temperature deviations
• Three application-specific timer functions
• Heat-insulating double-walled stainless steel lid with inner curvature
• TFT display showing all process data clearly
• Membrane keypad with clear symbols
• Temperature display switchable between °C and °F
• Sensor break/short-circuit monitoring
• Bath interior, lid, perforated floor and heating element in stainless steel
• Design prevents condensate from dripping back into vessels
• Temperature setting and display in 0.1 °C increments
• Digital setpoint adjustment
• 1-point temperature controller with electronic monitoring
• Bath vessel with drain valve
• Lid and perforated floor supplied as standard

Working range

• Min. working temperature: 25 °C
• Max. working temperature: 100 °C
• Temperature stability: ±0.1 K

Technical data (according to DIN 12876)

• Working temperature range: 25 ... 100 °C
• Ambient temperature range: 10 ... 40 °C
• Temperature stability: ±0.1 K
• Heater power max.: 1.5 kW
• Min. / max. bath volume: 9.3 / 37.9 L
• Dimensions (WxDxH): 510 x 490 x 476 mm
• Weight: 22 kg
• Power supply: 230 V; 50/60 Hz
• Power plug: Power cord with angled plug (CEE7/7)

Downloads (selected)

• Data sheet Hydro H 41 (datasheet available)
• Hydro product brochure / Hydro water baths operating instructions (family documentation available)

Accessories (examples)

• Insert racks (various sizes/types available for the Hydro series)

Specifications / technical characteristics

• Working temperature range: 25 ... 100 °C
• Temperature constancy: ±0.1 K
• Bath volumes: approx. 4 to 41 litres (model H 41: variant volumes listed)
• Heater power max.: 1.5 kW
• Min./Max. bath volume (example variant): 9.3 / 37.9 L
• Dimensions (WxDxH): 510 x 490 x 476 mm
• Weight: 22 kg
• Power supply / plug (example variant): 230 V; 50/60 Hz, power cord with angled plug (CEE7/7)
