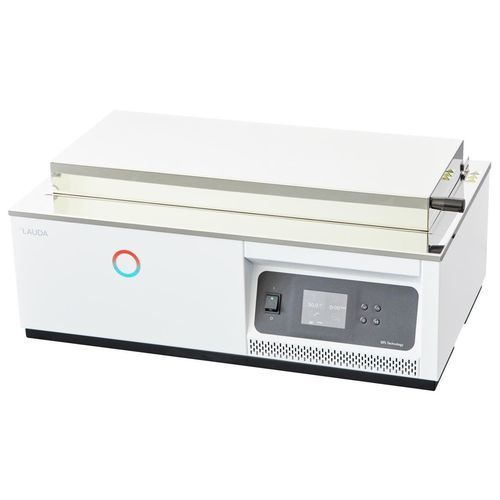

Heating water bath Hydro H 24

thermostaticmicroprocessor-controlledbenchtop

Product description
LAUDA Hydro water baths made of high-quality stainless steel offer the right bath depth and opening for every application with bath volumes from 4 to 41 litres. All water baths offer a temperature range of up to 100 °C with a temperature constancy of ±0.1 K, so that applications in the boiling range are also possible. A TFT colour display ensures intuitive operation with a temperature display in °C and °F.

Features

• Simple to operate water bath
• Timer: setting time values in hours (h) and minutes (min)
• Adjustable trigger points for over- and under-temperature alarms up to max. ±10 K
• Optical and acoustic alarm for low-level and over/under temperature
• Three application-specific timer functions
• Heat insulating lid made of stainless steel, double-walled with inner curvature
• TFT display with clear display of all process data
• Membrane keypad with concise symbols
• Temperature display can be switched from °C to °F
• Sensor break/short-circuit monitoring
• Bath interior, cover, sieve plate and heating element are made of stainless steel
• Design prevents condensate from dripping back into the vessels
• Setting and displaying temperature values in increments of 0.1 °C
• Digital setpoint adjustment
• 1-point temperature controller
• Electronic monitoring of the temperature controller
• Bath vessel with drain valve
• Lid and perforated floor as standard

Working range
Min. working temperature: 25 °C
Max. working temperature: 100 °C
Temperature stability: ±0.1 K

Technical specifications

• Working temperature range: 25 ... 100 °C
• Ambient temperature range: 10 ... 40 °C
• Temperature stability: ±0.1 K
• Heater power max.: 1.5 kW
• Min. / max. bath volume: 11.3 / 20.9 L
• Dimensions (WxDxH): 700 x 440 x 275 mm
• Weight: 18 kg
• Power supply: 230 V; 50/60 Hz
• Power plug: Power cord with angled plug (CEE7/7)
