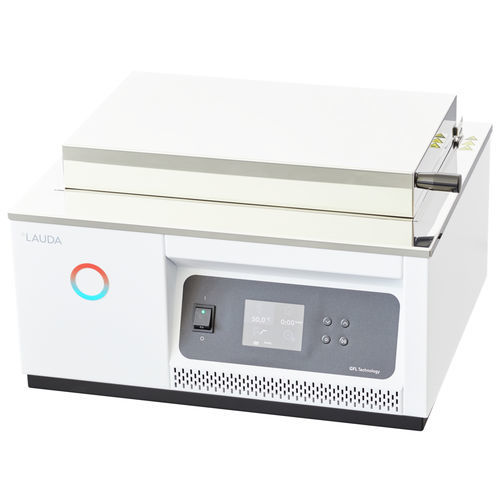

Heating water bath Hydro H 16

thermostaticmicroprocessor-controlledcompact

Description
LAUDA Hydro water baths in stainless steel provide precise temperature control for laboratory and industrial applications. The Hydro H 16 combines a compact footprint with bath volumes suitable for routine tasks, offering accurate regulation between 25 and 100 °C and a user-friendly TFT colour display showing °C/°F.

Features

• Simple operation with membrane keypad and concise symbols
• Timer settings in hours and minutes; three application-specific timer modes
• Adjustable over-/under-temperature alarm thresholds up to ±10 K with optical and acoustic alarm
• Sensor break/short-circuit indication and electronic 1‑point temperature monitoring
• Stainless steel bath interior, cover, sieve plate and heating element
• Double-walled, heat-insulating stainless steel lid; design prevents condensate dripping into vessels
• TFT colour display with clear process data; temperature display switchable between °C and °F
• Digital setpoint adjustment with 0.1 °C resolution
• Bath vessel with drain valve; lid and perforated floor supplied as standard

Working range
Min. working temperature: 25 °C
Max. working temperature: 100 °C
Temperature stability: ±0.1 K

Technical specifications

• Part no.: L002902
• Working temperature range: 25 ... 100 °C
• Ambient temperature range: 10 ... 40 °C
• Temperature stability: 0.1 ± K
• Heater power max.: 1.5 kW
• Min. / max. bath volume: 7.5 / 13.9 L
• Dimensions (W x D x H): 500 x 440 x 275 mm
• Weight: 14 kg
• Power supply: 230 V; 50/60 Hz
• Power plug: Power cord with angled plug (CEE7/7)
