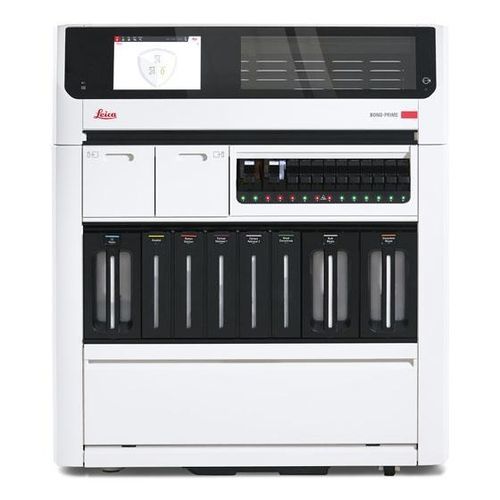

Automatic sample preparation system BOND-PRIME

IHClaboratoryfor slide staining

Overview
The BOND-PRIME staining platform delivers high productivity, universal access and an adaptable workflow to process batched, continuous, single-slide or STAT cases. The system produces consistent, high-quality IHC and ISH staining with an average IHC slide turnaround time (TAT) of 95 minutes and supports accelerated processing for single/STAT slides as well as full loads.

Key Features

• Universal access: load any slide in any combination with any reagent at any time using independent Active Reagent Control (ARC) modules (individual staining chambers).
• ARC technology: precise dispense, reagent flow control and controlled incubation for reproducible staining results.
• Flexible workflow: handles single slides, complete cases, full batches or mixed workflows with continuous load/unload so finished slides do not block new processing.
• High reagent capacity: 70 open-access reagent positions and bulk reagent support (up to >200-slide bulk reagent capacity with large containers).
• High throughput architecture: multi-drawer slide arrangement to support laboratory productivity and parallel processing.
• Integrated safety and waste handling: built-in hazardous waste container and options for external bulk waste management.

Product Features (additional details)

• Independent ARC modules allow mixed protocols, pretreatments, chromogens and detection chemistries to run concurrently.
• Supports multiple reagent container sizes (7 mL, 30 mL, 6 mL titration vials/inserts) and bulk containers (1.25 L or 4.5 L for DI water).
• Next-generation robotics and optimized protocols enable rapid processing and reduced TATs.
• ARC Covertile: semi-permanent self-cleaning sealing to reduce reagent use and protect tissue morphology.
• Detection options include BOND-PRIME Polymer DAB, BOND-PRIME Polymer AP, ChromoPlex 1 Dual Detection; hematoxylin supplied separately.

Product Specifications
Dimensions: 1217 mm (W) x 1400 mm (H) x 831 mm (D) | 47.9 in (W) x 55.1 in (H) x 32.7 in (D)
Slide capacity: 72 (24 slides in Preload Drawer, 24 slides in ARC Array, 24 slides in Unload Drawer)
Number of reagent containers: 70
Hazardous waste container capacity: 4.5 L
Operating voltage and mains frequency: 90 V to 264 V (nominal 100 V to 240 V)
Sound pressure level output (at 1 m): < 85 dBA maximum; < 65 dBA normal operation
Weight (dry): 384 kg (847 lb)
Reagent container sizes: 7 mL, 30 mL, 6 mL titration vials/inserts
Bulk reagent container capacity: 1.25 L or 4.5 L (DI water)
External bulk waste container capacity: 4.5 L
Power consumption: 1260 VA

Microscope Slide Specifications
Slide width: 24.64–26.0 mm (0.97–1.02 in)
Slide length: 74.9–76.0 mm (2.95–2.99 in)
Slide thickness: 0.9–1.2 mm (0.03–0.05 in)
Label width: 24.64–26.0 mm (0.97–1.02 in)
Label length: 16.9–21.0 mm (0.67–0.83 in)
Material: Glass, ISO 8037/1

Applications & Benefits

• Designed for mid-to-large clinical and anatomic pathology laboratories requiring fast IHC/ISH turnaround and high instrument utilization.
• Improves diagnostic productivity through consistent staining quality, flexible reagent access and continuous workflow capabilities.
• Supports a broad range of BOND ready-to-use primary antibodies and ancillary reagents for comprehensive IHC/ISH workflows.

Technical specifications

• Model: BOND-PRIME
• Average IHC slide TAT: 95 minutes (continuous workflow)
• Slide capacity architecture: Preload Drawer, ARC Array, Unload Drawer (24 slides each)
• Reagent positions: 70 open-access reagent positions
• ARC technology for precise dispense, flow control and incubation
• Bulk reagent support and large hazardous/external waste container options
• Power: 90–264 V input range; 1260 VA consumption
• Weight (dry): 384 kg
