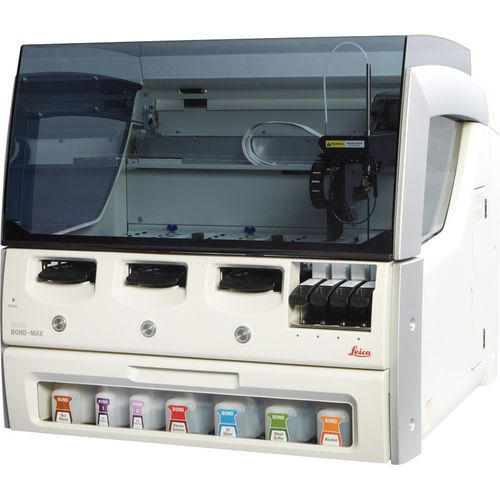

Automatic sample preparation system BOND-MAX

laboratoryIHCfor slide staining

Overview
The BOND-MAX is a bench-top fully automated IHC and ISH staining system designed for predictable throughput in space‑constrained laboratories. It combines a three-tray workflow, Covertile gentle reagent application and a comprehensive reagent menu to deliver consistent 3.5‑hour run times and improved case turnaround. Support and engineering are provided by Leica Biosystems.

Product Features

• Space-efficient bench-top design: Small footprint to increase capacity in limited laboratory space.
• Low-volume staining and waste reduction: Supports 100 µL and 150 µL slide volumes with BOND Covertile to protect tissue and minimize reagent use.
• Flexible three-tray workflow: Three independently operating trays provide on-demand loading and access; consistent 3.5‑hour run times for batch workflows.
• High reagent and antibody capacity: Accommodates up to 29 antibodies (with detection loaded) and enables antibody swaps without interrupting ongoing runs.
• User-centered operation: Transparent reagent bottles, continuous access to detection kits, and a visual, task-focused user interface to support lab productivity.
• Liquid-level monitoring: BOND Liquid Level Sensor measures reagent volumes before dispense to ensure full distribution to each slide.

Scalability – BOND-ADVANCE
Networkable solution to expand from a single instrument to a unified network of up to 30 BOND units. Integrates with existing LIS, supports configurable work cells and enhances lab resilience with built-in redundancy.

Applications / Use Notes
Bench-top fully automated IHC and ISH staining for clinical and diagnostic laboratories requiring predictable throughput, gentle reagent delivery and scalable network integration. Marked for In Vitro Diagnostic Use.

Technical specifications

• Product number: 49.0051
• Model: BOND-MAX
• Dimensions (W x H x D): 760 mm x 703 mm x 800 mm
  29.9 in x 27.6 in x 31.5 in
• Weight (dry): 120 kg (265 lbs)
• Slide capacity: 30 (finished trays 10 slides; trays replaceable continuously)
• Reagent containers: 36
• Slide volume capacity: 100 µL and 150 µL
• Reagent container capacity: 7 mL and 30 mL; bulk 1 L or 2 L
• Operating voltage: 90 V to 264 V (nominal 100 V to 240 V); Power: 1000 VA; 50/60 Hz
• Operating temperature: 5 °C to 35 °C (optimal 18–26 °C)
• Operating humidity: 30–80% RH (non-condensing)
• Maximum operating altitude: 0–1600 m
• Acoustic output: < 85 dBA maximum; < 65 dBA normal operation
• Microscope slides: Width 24.64–26.0 mm; Length 74.9–76.0 mm; Thickness 0.8–1.3 mm; Material: Glass, ISO 8037/1
• Storage / Transport: Storage temp -20 to 55 °C; storage humidity < 80% RH; road and air freight compatible
