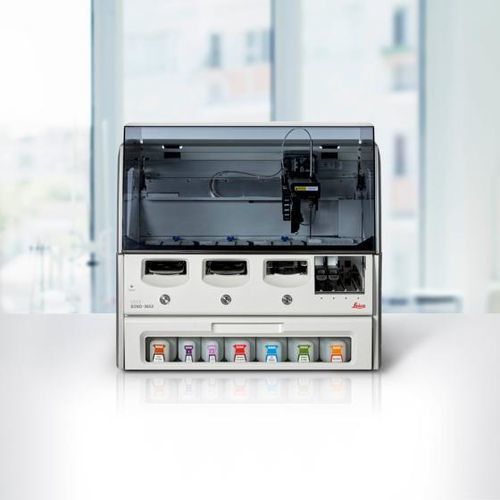

Fully automated sample preparation system BOND-MAX

IHClaboratoryISH

Overview
The BOND-MAX is a bench-top, fully automated IHC/ISH staining system designed for pathology and research labs that need high throughput in a compact footprint. The three independent trays deliver a consistent 3.5-hour run time, while the Covertile reagent application system enables low-volume, gentle dispensing to protect tissue and reduce reagent waste. The instrument supports comprehensive reagent menus and scalable connectivity for laboratory workflow integration.

Key Product Features

• Bench-top automated IHC/ISH stainer optimized for limited-space labs.
• Three-tray architecture with consistent 3.5-hour run times for predictable scheduling.
• Independent trays allow slide loading and on-demand access during runs.
• Holds up to 29 antibodies (with detection loaded) and supports hot-swap of antibodies without interrupting staining.
• BOND Covertile system supports 100 µL and 150 µL staining volumes for low-volume, tissue-preserving reagent application.
• See-through reagent bottles for visual capacity checks and uninterrupted access to detection kits, antibodies and probes.
• Task-focused, highly visual user interface to streamline operator workflow.
• BOND Liquid Level Sensor measures reagent volumes before dispense to ensure complete cycles.
• Scalable integration with BOND-ADVANCE and LIS for networked instrument management and configurable work cells.

Notes on Usage
Designed to increase slide throughput while minimizing bench footprint. The Covertile low-volume delivery reduces reagent consumption and preserves tissue morphology. The three-tray system supports mixed workflows (batch and on-demand) and operational flexibility for diagnostic and research applications.

Available Documentation (selected)

• Brochure - BOND-MAX (PDF)
• Declaration of Conformity for BOND-MAX (IVDR, PDF)

Videos (selected)

• Covertile System – Reagent Application Virtual Demo (video)

Technical specifications

• Dimensions (W x H x D): 760 mm x 703 mm x 800 mm (29.9 in x 27.6 in x 31.5 in)
• Weight (dry): 120 kg (265 lbs)
• Slide capacity: 30 (3 trays of 10 slides; trays may be replaced continuously)
• Number of reagent containers: 36
• Slide volume capacity: 100 µL and 150 µL
• Reagent container capacity: 7 mL and 30 mL
• Titration container capacity: 6 mL
• Bulk reagent container capacity: 1 L or 2 L
• Hazardous waste container capacity: 2 L
• Standard waste container capacity: 9 L
• Operating voltage: 90 V to 264 V (nominal 100 V to 240 V)
• Power consumption: 1000 VA
• Mains frequency: 50/60 Hz
• Operating temperature: 5°C to 35°C (41°F to 95°F); staining performance: 18–26°C (64–79°F)
• Maximum heating energy output: 1200W/1000W
• Operating humidity (non-condensing): 30 to 80% RH
• Maximum operating altitude: 0 to 1600 m (5250 ft)
• Sound pressure level (at 1 m): < 85 dBA maximum; < 65 dBA normal operation
• Accepted microscope slides: width 24.64–26.0 mm; length 74.9–76.0 mm; thickness 0.8–1.3 mm (glass, ISO 8037/1)
• Slide label area: width 24.64–26.0 mm; length 16.9–21.0 mm
• Transport & storage (packed): storage temperature -20 to 55°C; storage humidity < 80% RH; compatible with road and air freight
