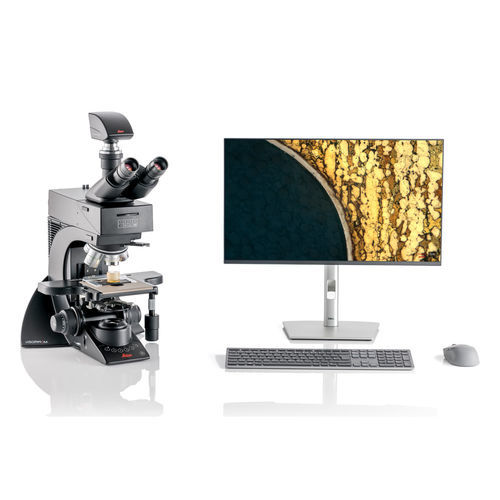

Optical microscope Visoria M

digitalinspectionlaboratory

Overview
The Visoria M materials microscope is designed for routine inspection and materials analysis in metals, electronics, polymers and QA/QC or R&D labs. It combines ergonomic controls, encoded illumination and digital workflow options to streamline inspection tasks and reduce operator fatigue.

Key Benefits

• Ergonomic design to support long-duration use and reduce repetitive strain.
• Encoded light management and function encoding for fast, reproducible changes of magnification and contrast method.
• Digital, eyepiece-free viewing option for direct tablet display and space-efficient setups.

Operate your microscope with ease
Intuitive handling and protective features enable fast, reliable daily operation.

• Color-coded aperture markings aligned with objective color codes for rapid selection.
• Built-in focus stop to prevent accidental contact between objective and sample.
• Three-gear focusing system (coarse, medium, fine) for precise focusing at higher magnifications.

Work without eyepieces by going digital
The eyepiece-free digital configuration supports modern inspection workflows:

• Direct viewing on a tablet in a comfortable posture.
• Immediate visualization, documentation and collaborative review of results.
• Reduced bench footprint since a PC is not required for digital viewing.

Powered by the Enersight software platform
Enersight simplifies image acquisition and analysis for materials inspection with functions tailored to industrial workflows:

• Layer Thickness Measurement for coating and layer analysis.
• XY Stitching (manual stage) to obtain large high-resolution fields of view.
• Extended Depth of Field (EDOF) for sharp capture of samples with variable surface heights.
• Quick Brightness for optimized illumination and camera settings.
• Shading correction for automatic compensation of uneven illumination.
• Merging of images from different contrast methods (e.g., brightfield and darkfield) for comprehensive interpretation.

Visualize sample details with the right contrast
Visoria M supports multiple contrast methods to reveal structures and defects relevant to materials inspection:

• Brightfield
• Darkfield
• Polarization
• Differential interference contrast (DIC)
• Oblique illumination (enhances surface topography)
• Fluorescence

Quick sample overview with the optional 0.7x Macro objective
The optional 0.7x Macro objective provides a fast overview of macro structures with approximately 36 mm sample diameter, enabling quick orientation and screening before switching to higher-magnification objectives.

Ergonomics and adaptation
Visoria M adapts to operator needs to support correct posture and reduce repetitive motions:

• Symmetrical control layout and height-adjustable focus and stage knobs allow one-hand operation and aligned shoulder posture.
• Easy switch between right- and left-handed operation for shared workstations.
• Ergonomic accessories: 15° ergonomic tube, adjustable VarioTubes (0–35° tilt), ErgoModules for eyepiece height adjustment, and optional ErgoLift for overall height adjustment.

Simplify documentation and imaging
Capture images with a dedicated acquisition button on the stand while keeping focus on the sample. Stored images include selected system settings and metadata and receive an automatically adjusted scale bar to speed documentation.

Included configuration example (bundle items)
Visoria M Digital Materials Microscope for Inspection and Measurement of Fine Details and Surface Structures — configuration example includes the following items (item number shown where available):
Visoria M, 5-fold — Qty: 1 (11561614)
Ground plate — Qty: 1 (11561609)
Focus drive 3-step for M/P — Qty: 1 (11561607)
Focus knobs for Visoria — Qty: 1 (11561608)
IL axis, 4-fold — Qty: 1 (11561600)
Lamp housing LH113 LED — Qty: 1 (11504199)
Dust cover DML/Visoria/3000 Fluo/Photo — Qty: 1 (11501074)
Ergo stage IND 76x50 with stage bracket — Qty: 1 (11888703)
Slide holder IND — Qty: 1 (11888711)
Reflector BF, fixed — Qty: 1 (11888716)
Reflector DF — Qty: 1 (11888740)
Microscope Objective N PLAN EPI 5x/0.12 BD — Qty: 1 (11566077)
Microscope Objective N PLAN EPI 10x/0.25 BD — Qty: 1 (11566083)
Microscope Objective N PLAN EPI 20x/0.40 BD — Qty: 1 (11566067)
Microscope Objective N PLAN EPI 50x/0.75 BD — Qty: 1 (11566074)
Microscope Objective N PLAN EPI 100x/0.85 BD — Qty: 1 (11566075)
Flexacam c5 (digital camera option) — Qty: 1 (12730535)
C-Mount HC 0.55x — Qty: 1 (11541544)

Technical specifications

• Model: Visoria M
• Application: Materials inspection and routine material analysis — metals, alloys, electronic/mechanical components, composites, glass, ceramics, R&D and QA/QC labs.
• Operation modes: eyepiece-free digital configuration and classical optical configuration.
• Contrast methods supported: brightfield, darkfield, polarization, DIC, oblique illumination, fluorescence.
• Focus: three-gear focusing (coarse, medium, fine) with built-in focus stop.
• Stage: ergonomic XY stage accessible for one-hand adjustment; stage height/torque adjustable to reduce repetitive motions.
• Macro objective (optional): 0.7x Macro objective provides ~36 mm diameter overview.
• Illumination: encoded light management applies optimized illumination automatically when changing magnification/contrast.
• Software: Enersight platform — layer thickness measurement, XY stitching (manual stage), EDOF, Quick Brightness, shading correction, image merging across contrast methods.
• Imaging: integrated acquisition button on stand; automatic metadata and scale bar embedding.
• Ergo accessories: 15° ergonomic tubes, VarioTubes (0–35°), ErgoModules, ErgoLift (optional).
• Digital camera options: Flexacam c5 and other Flexacam models available for digital workflows.
