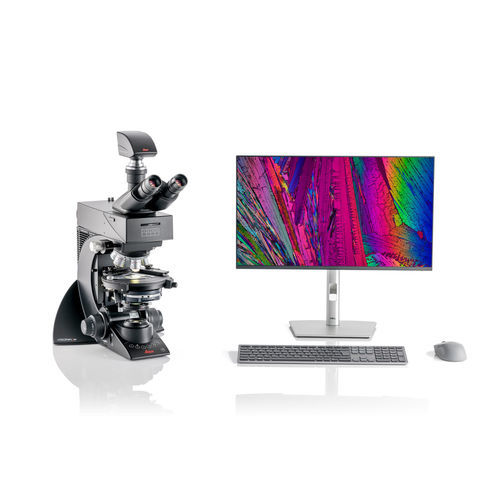

Digital microscope Visoria P

opticalfor materials researchtouchscreen tablet

Overview
Experience enhanced efficiency and comfort in routine polarized-light microscopy. The Visoria P polarization microscope is designed to analyze optical properties of birefringent and anisotropic materials such as minerals, rocks, polymers and composites. Encoded functions, automatic illumination settings and ergonomic design streamline laboratory workflows.

Key features

• Optimized for birefringent (optically anisotropic) materials: minerals, rocks, coal, plastics, polymers, liquid crystals, glass and concrete.
• Encoded functions and light management: illumination parameters are applied automatically when magnification or contrast method changes.
• Ergonomic layout to reduce neck and back strain; symmetrical control positioning and optional ergonomic accessories.

Operate your microscope with ease

• Match aperture diaphragm settings quickly using objective color markings.
• Built-in focus stop to protect samples and objectives from accidental contact.
• Three-gear focusing system (coarse, medium, fine) for precise control at high magnification.

Simplify documentation
Capture sample images directly from the microscope stand. When storing images, selected system settings and metadata are saved automatically and a correctly scaled bar is embedded.

Digital operation
The Visoria P digital version operates without eyepieces: view and document images on a tablet, share results quickly and save bench space by removing the need for a dedicated PC.

Enersight software platform (integrated functions)
Extend and streamline imaging workflows with Enersight. Key functions include:

• XY stitching (manual stage) to increase field of view at high resolution.
• Extended depth of field (EDOF) for sharp images of samples with topography.
• Quick Brightness to capture images with optimal illumination and camera settings.
• Automatic shading correction for uneven illumination.
• Multi-contrast image merging (e.g., brightfield + polarization) to improve sample interpretation.

Conoscopy and specialized analysis
Conoscopy capabilities allow evaluation of optical behavior of anisotropic materials. Available conoscopy modules:

• Bertrand lens cube
• Bertrand lens module (A/B module)
• Advanced conoscopy module

Specialized objectives & applications
Special objectives support application-specific workflows: oil-immersion objectives for coal analysis and dispersion-staining objectives for asbestos detection.

Ergonomics & accessories
Optional ergonomic accessories, including ErgoModules and ErgoLift, enable eyepiece height adjustment and comfortable working posture. Symmetrical layout and adjustable focus control height support aligned shoulders and optimal hand positioning.

Camera & imaging options
Digital camera integrations (examples: Flexacam c5 / Flexacam i5) provide live viewing and image capture. C-mount adapters are supported for a range of camera options.

Caractéristiques / spécifications techniques

• Type: Polarization microscope (Visoria P)
• Brand: Leica Microsystems
• Primary use: Investigation of birefringent / optically anisotropic materials (minerals, rocks, coal, polymers, glass, concrete, liquid crystals)
• Illumination: Encoded light management – automatic brightness/illumination settings with magnification or contrast changes
• Operation modes: Optical (eyepieces) and digital (tablet viewing without eyepieces)
• Documentation: Dedicated image acquisition button on stand; automatic metadata and scale bar embedding
• Focus system: 3-gear focusing (coarse, medium, fine) with built-in focus stop
• Aperture diaphragm: Color markings matching objective color codes
• Software platform: Enersight – XY stitching, EDOF, Quick Brightness, shading correction, multi-contrast merging
• Conoscopy: Support for Bertrand lens cube, A/B Bertrand module and advanced conoscopy module
• Special objectives: Oil-immersion for coal analysis; dispersion-staining objectives for asbestos analysis
• Ergonomic accessories: ErgoModules, ErgoLift and other ergonomic modules available
• Camera compatibility: Supports Leica camera options (e.g., Flexacam c5/i5) and C-mount adapters
