Ceiling-mounted double medical pendant
operating roomICUintensive care

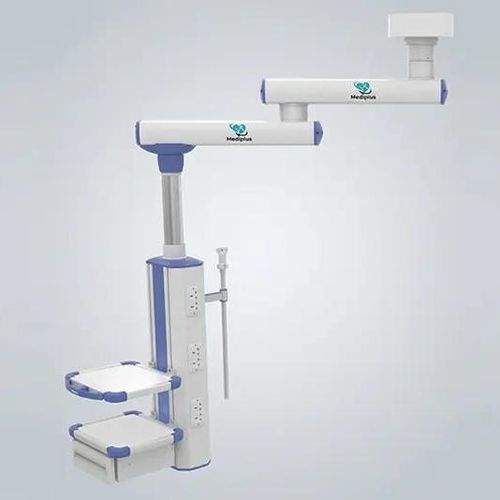

Ceiling-mounted double medical pendant - Medinain - operating room / ICU / intensive care
Ceiling-mounted double medical pendant - Medinain - operating room / ICU / intensive care
Add to favorites
Compare this product

Characteristics

Installation
ceiling-mounted
Applications
operating room, ICU, intensive care
Configuration
rotary, 2-arm, height-adjustable
Other characteristics
motorized
Load capacity

Max.: 150 kg
(331 lb)

Min.: 0 kg
(0 lb)

Description

Description
  • Ceiling-mounted dual-arm medical pendant providing medical gas outlets, power and equipment support for operating rooms, intensive care units and emergency departments.


Key features
  • Horizontal arm radius: 1000 mm; horizontal arm and functional box rotate simultaneously with 340° horizontal rotation.
  • Functional box vertical lift stroke: 250–600 mm; motor power 100 W.
  • Rotary joint equipped with oxygen-balloon expandable isolation brakes — press brake button to rotate easily, release to lock position.
  • Standard gas terminal configuration: Oxygen ×2, Suction ×2; terminals available in different colors and shapes.
  • Gas terminal performance: >20,000 mating cycles; secondary seal with three states (on, off, pull) supporting air service.
  • Instrument platforms: two-tier height-adjustable platforms with rounded bumpers; load capacity 20 kg per platform.
  • Power supply options: AC 220V/50Hz and AC 110V/60Hz; electrical outlets: 6 × 220V / 10A; potential ground terminals: 2.
  • Network interface: RJ45 ×1; drawer: 1 pc; syringe pump rack: 1 pc; infusion pump rack: 1 pc; maximum weight loading: 150 kg.
  • Main material: high-strength aluminium alloy; surface treatment: imported high-voltage electrostatic powder spray.


Technical specifications
  • Horizontal arm radius: 1000 mm
  • Horizontal rotation angle: 340° (simultaneous rotation of arm and functional box)
  • Vertical lift stroke (functional box): 250–600 mm
  • Motor power: 100 W
  • Rotary joint: oxygen-balloon expandable isolation brakes (brake button to lock/release)
  • Gas terminals (standard): Oxygen ×2, Suction ×2 — >20,000 mating cycles; secondary seal with three states (on/off/pull)
  • Instrument platforms: 2 layers, height adjustable, load per platform 20 kg
  • Power: AC 220V/50Hz / AC 110V/60Hz; Outlets: 6 × 220V/10A; Ground terminals: 2
  • Network: RJ45 ×1; Drawer: 1; Max load: 150 kg; Pump racks: syringe 1, infusion 1
  • Material: high-strength aluminium alloy; Surface: high-voltage electrostatic powder coating


Applications and installation
  • Intended for operating theatres, intensive care units, recovery rooms and emergency rooms where reliable delivery of medical gases, power and devices is required.
  • Ceiling-mounted installation frees floor space and centralises services at point of care.
  • Rotary joint and brake system allow precise positioning and secure locking of the pendant and equipment.
  • Electrical and gas connections must be configured according to local regulations and facility infrastructure at time of installation.


Options and ordering information
  • Customisable gas terminal colors and shapes; additional gas outlet configurations available on request.
  • Optional pump racks, extra electrical outlets, and alternative power supply configurations (110V/220V).
  • Please specify required accessories, mounting height and local compliance requirements when ordering.
