Ceiling-mounted medical pendant
intensive careoperating roomheight-adjustable

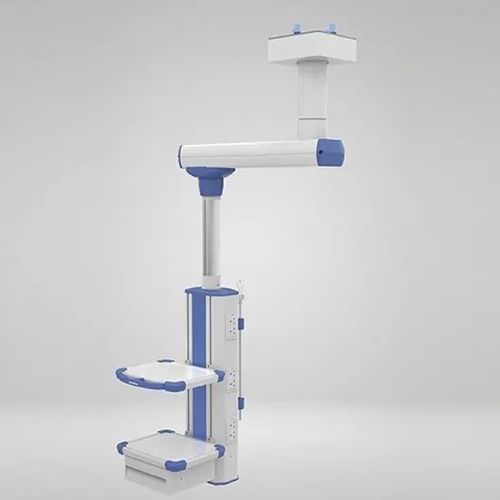

Ceiling-mounted medical pendant - Medinain - intensive care / operating room / height-adjustable
Ceiling-mounted medical pendant - Medinain - intensive care / operating room / height-adjustable
Add to favorites
Compare this product

Characteristics

Installation
ceiling-mounted
Applications
intensive care, operating room
Configuration
height-adjustable, articulated, single-arm
Other characteristics
motorized
Load capacity

150 kg
(331 lb)

Description

Product Overview
  • Ceiling-mounted single-arm medical pendant (model: Single Arm) designed to supply gases, power and equipment support for operating rooms and intensive care units.
  • Horizontal arm reach: 1000 mm; horizontal arm and service box rotate independently with 340° rotation per joint for flexible positioning.
  • Functional box vertical travel: 250–600 mm; motorized lift with 100 W motor for controlled adjustment.
  • Rotary joint features an inflatable isolation brake for precise, drift-free locking: press to rotate, release to secure.
  • Gas terminal standard configuration: Oxygen x2 and Suction x2. Connectors are color-coded and keyed, rated for over 20,000 mating cycles; secondary-seal valves offer three states (on, off, pull) suitable for medical gas service.
  • Instrument platforms: two height-adjustable tiers with rounded bumper edges; each platform supports 20 kg; total payload capacity 150 kg.
  • Accessory provisions: syringe pump rack x1, infusion pump rack x1, drawer x1.
  • Electrical and network: 6 electrical outlets (220 V / 10 A), 2 potential ground terminals, RJ45 network port x1.
  • Construction: high-strength aluminium alloy with high-voltage electrostatic powder coating for durable finish.


Technical specifications
  • Horizontal arm radius: 1000 mm
  • Horizontal rotation angle (each): 340°
  • Functional box vertical stroke: 250–600 mm
  • Motor power: 100 W
  • Gas terminals: Oxygen x2; Suction x2; secondary seal with three states (on, off, pull)
  • Instrument platforms: 2 layers, height adjustable; load per platform: 20 kg
  • Overall load capacity: 150 kg
  • Power supply: AC220 V 50 Hz or AC110 V 60 Hz
  • Electrical outlets: 6 (220 V / 10 A)
  • Potential ground terminals: 2
  • Network: RJ45 (1)
  • Drawer: 1
  • Syringe pump rack: 1; Infusion pump rack: 1
  • Main material: High-strength aluminium alloy
  • Surface finish: High-voltage electrostatic powder coating
