Ceiling-mounted medical pendant ME-E21

operating roomintensive care

Product overview

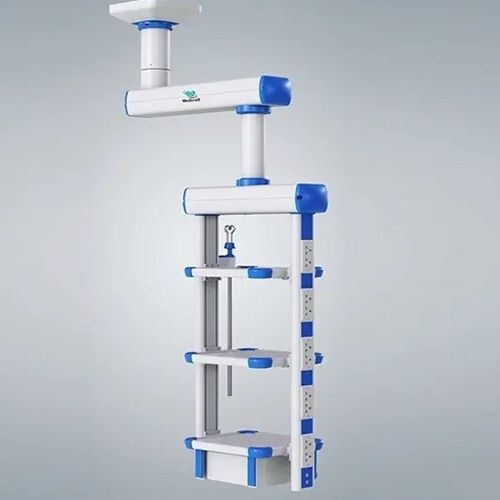

Ceiling-mounted medical pendant ME-E21 for delivery of medical gases, power and accessory support in operating rooms and intensive care units.

Key features

• Gas interface configuration: 2 oxygen, 2 vacuum suction, compressed air
• Interface features: distinct color and shape with anti-missing function
• Durability: insertion/removal cycle > 20,000 times
• Sealing: secondary sealing with three states (on, off, pull) and gas maintenance
• Power sockets: 10 sockets, 220V, 10A
• Equipotential grounding terminals: 2
• Accessories: one stainless steel adjustable infusion rod holder
• Accessories: one stainless steel adjustable syringe pump frame
• Material: high-strength aluminum alloy profiles
• Surface treatment: electrostatic spraying
• Installation: ceiling-mounted, stable and firm
• Storage: one storage item

Technical specifications

• Gas interfaces: 2 oxygen, 2 vacuum, compressed air
• Insertion/removal cycles: >20,000
• Sealing states: on / off / pull
• Power: 10 × 220V, 10A
• Equipotential grounding: 2 terminals

Materials and installation

• Main material: high-strength aluminum alloy profiles
• Surface finish: electrostatic spray
• Mounting: ceiling-mounted installation

Accessories included

• 1 stainless steel adjustable infusion rod holder
• 1 stainless steel adjustable syringe pump frame
• 1 storage unit
