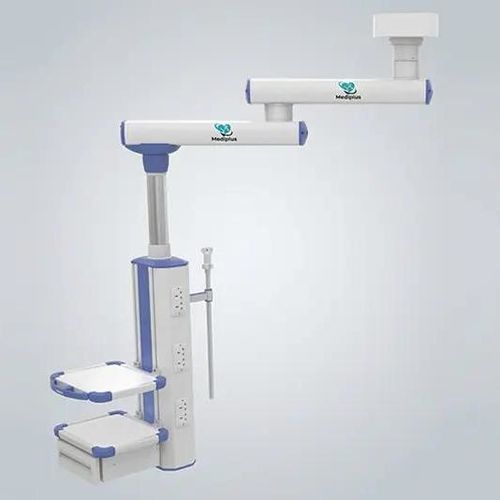

Ceiling-mounted double medical pendant Dual Armintensive careoperating roomheight-adjustable
Add to favorites
Compare this product
Characteristics
- Installation
- ceiling-mounted
- Applications
- intensive care, operating room
- Configuration
- 2-arm, rotary, height-adjustable
- Load capacity
Min.: 0 kg
(0 lb)Max.: 20 kg
(44 lb)
Description
Product overview
Typical applications
Installation & maintenance
Technical specifications
- Medical pendant with dual horizontal arms providing a 1000 mm radius; horizontal arm and functional box rotate simultaneously with a 340° range.
- Gas terminals standard configuration: Oxygen 2 pcs, Suction 2 pcs.
- Different colors and shapes for quick identification
- Designed for >20,000 mating cycles
- Secondary seal and three-state operation (on / off / pull) supporting air service
- Instrument platforms: two-layer, height-adjustable, rounded bumper design; each platform supports up to 20 kg.
- Electrical and utilities: power supply options AC220V 50Hz or AC110V 60Hz; 6 × 220V/10A electrical outlets; 2 potential ground terminals; 1 × RJ45 network interface; 1 drawer for small equipment or supplies.
Typical applications
- Suitable for operating rooms, intensive care units, recovery rooms and other clinical areas that require integrated medical gas, power and equipment support.
Installation & maintenance
- Horizontal arm and functional module rotate together for flexible positioning; platforms are height-adjustable to improve ergonomic arrangement of devices.
- Gas connectors are color/shape coded to reduce connection errors; connectors are rated for over 20,000 mating cycles and include a secondary seal to minimise leakage risk.
- Electrical, network and grounding interfaces are accessible on the functional box; routine inspection and preventive maintenance are recommended.
Technical specifications
- Horizontal arm radius: 1000 mm
- Horizontal rotation angle: 340° (arm and functional box simultaneously rotatable)
- Gas terminals: Oxygen x2, Suction x2
- Gas terminal features: multiple colors/shapes, >20,000 mating cycles, secondary seal, three-state operation (on/off/pull) supporting air service
- Instrument platform: Two-layer, height adjustable, rounded bumper, load capacity 20 kg per platform
- Power supply options: AC220V 50Hz; AC110V 60Hz
- Electrical outlets: 6 × 220V/10A
- Potential ground terminals: 2
- Network interface: 1 × RJ45
- Drawer: 1
