Ceiling-mounted medical pendant Single Arm
height-adjustablesingle-armrotary

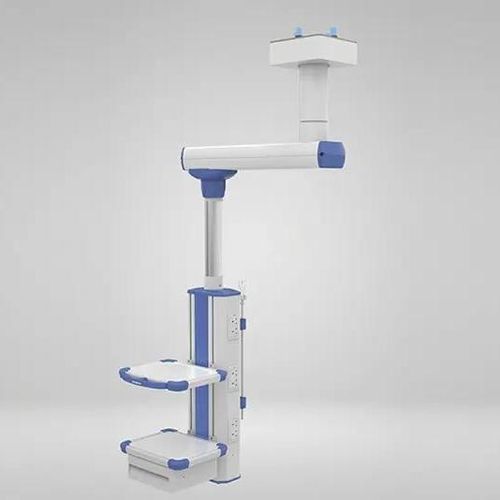

Ceiling-mounted medical pendant - Single Arm - Medinain - height-adjustable / single-arm / rotary
Ceiling-mounted medical pendant - Single Arm - Medinain - height-adjustable / single-arm / rotary
Add to favorites
Compare this product

Characteristics

Installation
ceiling-mounted
Configuration
single-arm, height-adjustable, rotary
Other characteristics
with shelves
Load capacity

20 kg
(44 lb)

Description

Product overview
  • Horizontal arm radius: 1000 mm; horizontal arm and functional box rotate together; horizontal rotation angle: 340°.
  • Standard gas terminal configuration: Oxygen 2 ×, Suction 2 ×.
    • Available in different colors and shapes
    • More than 20,000 connection cycles
    • Secondary seal design with three states (on, off, pull); can support medical air service
  • Instrument platform: two layers, height-adjustable; rounded bumpers; each platform load capacity: 20 kg.
  • Power supply: AC 220 V 50 Hz or AC 110 V 60 Hz.
  • Electrical outlets: 6 × 220 V / 10 A.
  • Protective earth terminals: 2.
  • Network interface: 1 × RJ45.
  • Drawer: 1.


Technical specifications
  • Horizontal arm radius: 1000 mm
  • Horizontal rotation angle: 340°
  • Gas terminals: Oxygen (2), Suction (2)
  • Gas terminal features: secondary seal; three states (on, off, pull); >20,000 connection cycles; various colors and shapes available
  • Instrument platform: two-layer, height-adjustable, rounded bumpers; load capacity 20 kg per platform
  • Power supply: AC 220 V 50 Hz or AC 110 V 60 Hz
  • Electrical outlets: 6 × 220 V / 10 A
  • Protective earth terminals: 2
  • Network interface: 1 × RJ45
  • Drawer: 1
