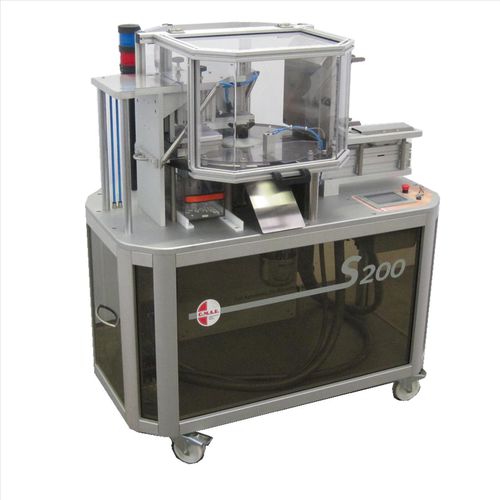

Automatic deblistering machine S 200

rotarytabletfor blister

S200 is the latest innovation among the recovery blistering machines of O.M.A.R. It was designed to recover any type of products packaed in blisters of different shapes and materials, particularly child proof blisters that are made of high resistance cover. The machine productivity is approximately 30-40 blisters/minute and the maximum blister size is 110x150 mm. The S200 is equipped with an automatic blister handling system composed by four stations: 1) blister loading, 2) single pocket perforation, 3) product expulsion, 4) de-blistered blister expulsion. The machine works all types of blisters made with all types of forming and covering materials such as ALU, PP, MEDICAL PAPER, CHILD RESISTANT, ALUMINIUM-PE, PE, etc. The components of the formats have a simple design and are easy to be replaced - tools are not required nor are specialised personnel. MAIN CHARACTERISTICS 1)Structure on pivoting wheels for easy positioning 2)Vertical loader for blisters with maximum dimensions of 110 x 150 mm 3)Automatic insertion of the blister 4)Perforation station for each individual pocket 5)Pressure station for product ejection 6)Trays for product containing 7)Trays for disposed blisters containing 8)Total accident prevention protection 9)Compressed air required
