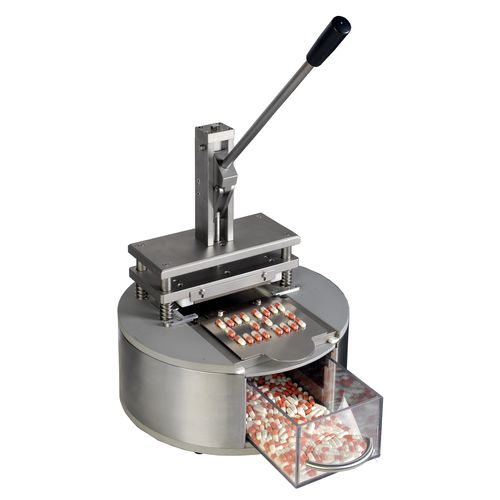

Manual deblistering machine S40

compactbenchtopblister

Product description The S40 manual format deblistering machine features rapid format-change systems. A small shuttle dedicated to mould positioning accepts one or more blisters with a maximum mould size of 125×95 mm. Blister loading is manual; format changes are very fast and simple. A mechanical pressure multiplier located on the upper part of the machine generates approximately 400 kg of pressure. Via a mechanical lever, it compresses the pockets, extracts the product and directs it into a tray positioned under the workstation. Built in aluminium, steel and stainless steel, the S40 is positioned as the smallest and most economical non-universal format deblistering machine on the market.

Main characteristics

• Manual format deblistering machine
• Up to 2 blisters per stroke for 90 × 70 mm parts
• Dedicated/custom formats (moulded)
• Pressure applied via manual mechanical system (~400 kg)
• Custom moulds possible
• Product recovery tray in polycarbonate – stainless steel

Production

• Production: 6 bpm (blisters per minute)

Technical specifications

• Machine footprint: 440 mm × 670 mm (height) — weight: 15 kg
• Consumptions / other technical data: not available
• Production: 6 bpm (blisters per minute)
