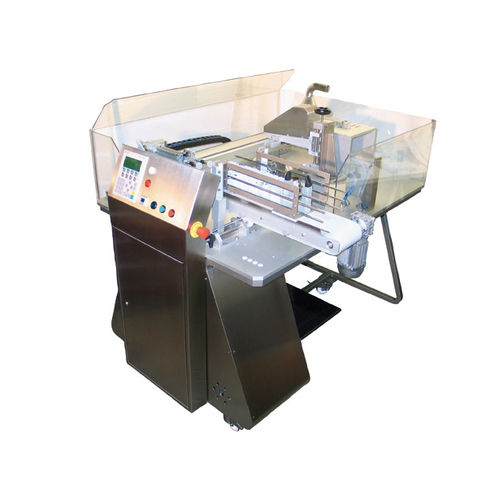

Automatic debagging machine B200

vacuumlinearfor powders

Product description
The B200 universal sachet de-sacking machine is the first model designed to recover powders and granulates packaged in sachets within production departments. Its functional layout, equipped with loading, cutting, shaking and unloading stations, enables fast and linear de-sacking of sachets with different contents, weights and dimensions without the need for format parts or external accessories. B200 recovers volatile and non-volatile powders safely via a suction system connectable to the RIBO extraction system and can be fitted with a liquid recovery system for products packaged in sachets.

Main characteristics

• Automatic sachet de-sacking machine
• Loading station
• Recovery of powders, granules of all kinds and liquids (on request)
• Max. sachet dimensions: 150x170h mm
• Min. sachet dimensions: 60x70h mm
• Productivity: approx. 13 sachets/min.
• Suction of volatile powders with RIBO suction system
• Output for remote printer connection (on request)
• Memory Plus for data storage (on request)
• Dust container made of stainless steel AISI 316L

Production
Production: approx. 13 sachets/min.

Technical specifications

• Machine layout: 900 x 700 x 1400 mm (H) – 250 kg
• Compressed air connection: PIPE INT Ø MM.6 - EXT Ø MM.8
• Compressed air consumption: approx. 8 to 10 litres/min
• Operating pressure: 4–8 BAR
• Main electric voltage: 230V 50Hz (on request)
• Power consumption: 1.2 KW
• Machine working temperatures: N.A.
• Machine use environmental data: N.A.
• Closed-circuit cooling system: N.A.
