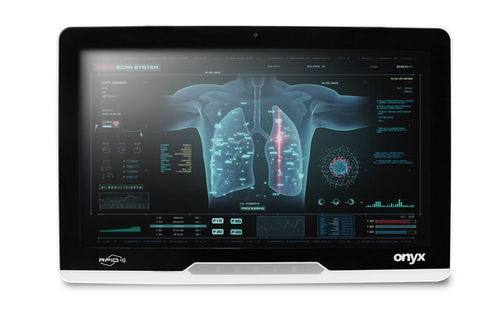

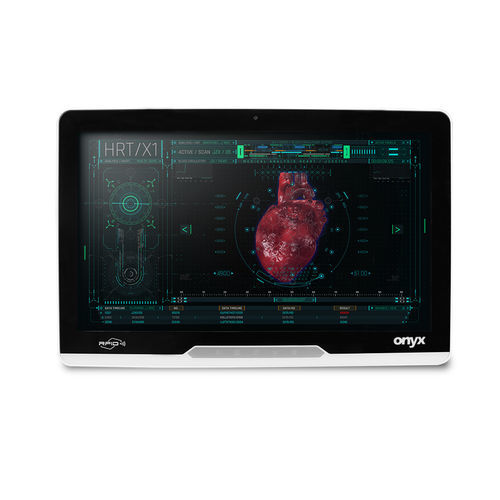

Intel® Core™ medical panel PC MATE2-2212all-in-oneRFID technologySSD 64 GB
Add to favorites
Compare this product
Characteristics
- Processor
- Intel® Core™
- Configuration
- all-in-one
- Technology
- RFID technology
- HDD capacity
- SSD 64 GB
- Resolution
- full HD, full HD
- Other characteristics
- fanless, multitouch screen, HDMI, waterproof, antibacterial enclosure, with USB
- Screen size
22 in
- Frequency
Max.: 5 GHz
Min.: 4.1 GHz
Description
● Capacitive Multi-Touch Screen
● Two Gigabit Ethernet
● High Speed USB 3.2 Gen2 Ports
● RS-232 x 2
● 8MP Camera with Mic (optional)
● PCI Express [x4] / [x1] x1 (optional)
● Imprivata RFID Reader (optional)
● Reading Light
● 25W Backup Battery Support (Optional)
Specifications
OS Support
Windows® 10
Windows® 11
Linux®
System Memory
64GB
Security
Trusted Platform Module 2.0
Imprivata RFID reader (optional)
Storage
2.5" SATA HDD/SSD x 1 (optional)
M.2 2280 SATA SSD x 1
Wireless Communication
Bluetooth 5 (optional)
802.11 ax (optional)
802.11 ac/a/b/g/n(optional)
Speaker
2W x2
Function Key
Reading Light On/Off
Touch Screen On/Off
LCD Brightness Up/Down
Expansion Interface
PCI Express[x4]/[x1] x1 (optional)
Touch
Capacitive Multi-Touch
Resolution
1920x 1080(FHD)
Contrast Ratio
1000:1
Luminance (cd/m2)
250nits
View Angle
178˚(H)/178˚(V)
I/O
USB
Video Out
HDMI 2.0 x 2
Serial Port
RS-232 x 2
Audio
Line-out
Mic-in
Ethernet
1.5kv isolated Gigabit LAN x2
