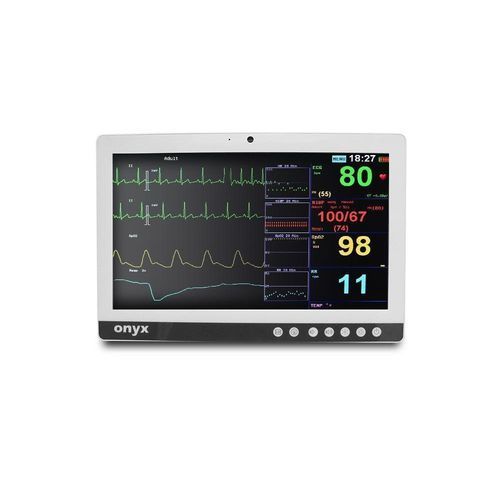

Dual-core medical panel PC Venus-123

Intel® Core i7Intel® Core i3Intel® Core i5

Product Summary
11.6" medical panel PC featuring Intel® Skylake processors, hot-swappable dual-battery design for continuous 24/7 operation, medical-grade EMC and safety certifications, and a front panel cleanable with hospital solvents.

Key Features

• Medical safety protection: EMC4.1 / Safety 3.2
• Front-panel cleanability compatible with hospital disinfectants
• Hot-swappable dual-battery supporting continuous 24/7 runtime
• Intel® Skylake Dual-Core i5 (configurable up to i7/i3)
• Remote monitor/control/update support (ORION compatible)
• Isolated Gigabit LAN and isolated COM port

Specifications
System

• Processor: Intel® Skylake (configurable)
• OS Support:
  • Windows® 7
  • Windows® 10
  • Windows® 11
  • Ubuntu 18.04 LTS
  • IGEL (thin client solution)
• System Memory: 16GB
• Security: Trusted Platform Module 2.0 (TPM 2.0)
• Storage: M.2 SSD up to 512GB
• Wireless Communication (optional): 802.11 a/b/g/n/ac/ax; Bluetooth 4.0
• Speaker: 2W x2

Display

• Display Size: 11.6"
• Touch: Projective capacitive touch screen (optional)
• Resolution: 1366 x 768 (WXGA)
• Max. Colors: 262K
• Contrast Ratio: 500:1
• Luminance: 250 nits

I/O

• USB: USB 2.0; USB 3.0 (Type-A)
• Video Out: HDMI x1
• Serial Port: COM port x1 (isolated)
• Ethernet: Gigabit LAN x2 (isolated)

Mechanical and Environmental

• Power Supply: DC-in; hot-swappable dual-battery design
• Degree of Protection: IP65 (front); IPX1 (back)
• VESA: 75 / 100 mm
• Operating Temperature: 0°C ~ 35°C
• Storage Temperature: -20°C ~ 60°C
• Storage Humidity: 10% ~ 95% @ 40°C, non-condensing
• Dimensions (WxDxH): 300 x 43 x 205 mm
• Package Size: 420 x 185 x 345 mm
• Gross Weight: 2.6 kg
• Net Weight: 1.9 kg
• Certifications: CE (ITE & Medical); FCC (ITE & Medical); UL; cUL; TELEC

Model / Technical specifications

• Model: Venus-123
• Brand: Onyx Healthcare Inc.
• Display: 11.6", 1366 x 768 (WXGA), 250 nits
• Processor: Intel® Skylake (configurable)
• Memory: 16GB
• Storage: M.2 SSD up to 512GB
• Touch: Projective capacitive (optional)
• Wireless: 802.11 a/b/g/n/ac/ax (optional); BT 4.0 (optional)
• USB: USB 2.0; USB 3.0 (Type-A)
• Video Out: HDMI x1
• Ethernet: Gigabit LAN x2 (isolated)
• Serial: COM port x1 (isolated)
• Power: DC-in; hot-swappable dual-battery for continuous operation
• Protection: IP65 front / IPX1 back
• Dimensions: 300 x 43 x 205 mm
• Net Weight: 1.9 kg
• Certifications: CE, FCC, UL, cUL, TELEC
