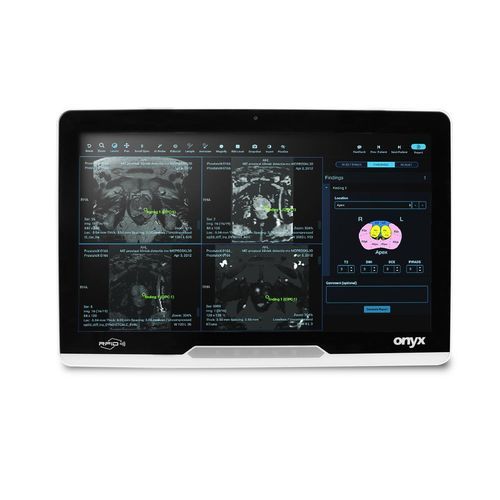

Intel® Core i3 medical panel PC MATE2-2215

Intel® Core™Intel® Core i5Intel® Core i7

Short description
22" Fanless Intel® Core™ Processors Powerful Medical All in One PC

Overview
The MATE2-2215 (22”) Medical AIO Panel PC is engineered for demanding clinical environments such as operating rooms, ICUs and emergency departments. Powered by Intel® Core™ 7/5/3 (Bartlett Lake‑S) processors with turbo frequencies up to 5.4 GHz, the MATE2-2215 supports real-time medical imaging and data-intensive workflows. The unit features a 22" Full HD anti-glare capacitive multi-touch display, fanless waterproof design, PCIe expansion options and medical-grade interfaces to integrate into clinical systems.

Key features

• Intel® Core™ 7, 5, 3 processors (code name: Bartlett Lake‑S)
• Dual channel DDR5-5600 SODIMM support, up to 64 GB
• 22" Full HD wide viewing angle LCD
• Capacitive multi-touch with anti-glare (AG) coating
• Dual Gigabit Ethernet ports
• High-speed USB 3.2 Gen2 ports
• RS-232 x2
• 8 MP camera with microphone (optional)
• PCI Express expansion: x4 / x1 (optional)
• Imprivata RFID reader (optional)
• Integrated reading light
• 25 W backup battery support (optional)

Technical specifications

• Model: MATE2-2215
• Display: 22" Full HD (wide viewing angle)
• Touch: Capacitive multi-touch with anti-glare (AG) coating
• Processor: Intel® Core™ 7/5/3 (Bartlett Lake‑S), turbo up to 5.4 GHz
• Memory: Dual channel DDR5-5600 SODIMM, up to 64 GB
• Networking: Dual Gigabit Ethernet ports
• USB: High-speed USB 3.2 Gen2 ports
• Serial: RS-232 x2
• Camera: 8 MP with microphone (optional)
• Expansion: PCI Express x4 / x1 (optional)
• Security: Imprivata RFID reader (optional)
• Power: 25 W backup battery support (optional)
• Design: Fanless and waterproof
• Intended use: Operating rooms, ICUs, emergency departments
