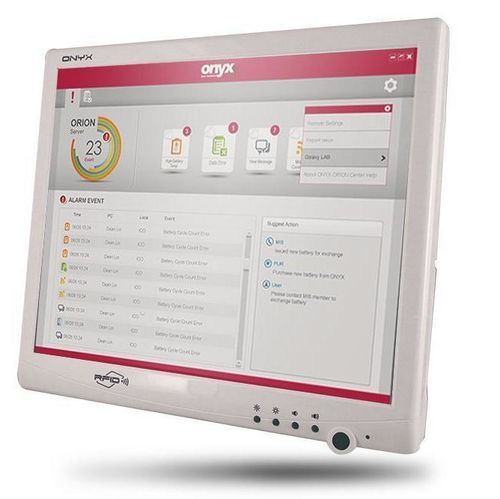

Intel® Core i5 medical panel PC Venus-173

Intel® Core i7Intel® Core i36th generation Intel® Core™

Short description
17" Intel i7/i5/i3 Medical Panel PC Venus-173 with dual hot-swappable battery design for continuous 24/7 operation and hospital-grade cleanability.

Key features

• Highest level of medical safety protection (EMC 4.1 / Safety 3.2)
• Surface cleanable with hospital solvents
• Hot-swappable dual-battery design supporting 24/7 runtime
• Intel® Skylake Dual-Core i5 (configurable up to i7 or i3)
• Remote monitoring / control / update support (ORION compatible)
• Isolated Gigabit LAN and isolated COM port

Specifications
System
Processor: Intel® Skylake (i7 / i5 / i3 options)
OS support: Windows® 7; Windows® 10; Ubuntu 18.04 LTS; IGEL thin client
System memory: 16 GB
Security: Trusted Platform Module (TPM) 2.0
Graphics: Intel® Graphics
Storage: M.2 SSD up to 512 GB
Wireless: 802.11 a/b/g/n/ac; Bluetooth 4.0 (optional)
Audio: 3W × 2 speakers

Display
Display size: 17"
Resolution: 1280 × 1024 (XGA)
Colors: 16.7M
Contrast ratio: 1000:1
Luminance: 250 cd/m²

I/O
USB: USB 2.0; USB 3.0 (Type-A)
Video out: HDMI ×1
Serial: COM port ×1 (isolated)
Ethernet: Gigabit LAN ×2 (isolated)

Mechanical and Environmental
Power: DC-in; dual battery support, hot-swappable for continuous operation
Mounting: VESA 75 / 100 mm
Operating temperature: 0°C ~ 35°C (32°F ~ 95°F)
Storage temperature: -20°C ~ 60°C (-4°F ~ 140°F)
Storage humidity: 10% ~ 95% @ 40°C, non-condensing
Dimensions (W×D×H): 384 × 57 × 345 mm
Package size: 510 × 200 × 480 mm
Gross weight: 5.7 kg
Net weight: 4.5 kg
Certifications: CE (ITE & Medical); FCC (Medical & ITE); UL; cUL; TELEC

Technical specifications

• Model: Venus-173
• Display: 17", 1280 × 1024 (XGA), 250 nits, 1000:1, 16.7M colors
• Processor: Intel® Skylake (i7 / i5 / i3 options)
• Memory: 16 GB system memory
• Storage: M.2 SSD up to 512 GB
• Graphics: Intel® Graphics
• OS support: Windows 7, Windows 10, Ubuntu 18.04 LTS, IGEL
• Wireless: 802.11 a/b/g/n/ac; Bluetooth 4.0 (optional)
• Audio: 3W ×2 speakers
• I/O: USB 2.0, USB 3.0 Type-A, HDMI ×1, COM ×1 (isolated), Gigabit LAN ×2 (isolated)
• Power: DC-in; dual-battery, hot-swappable
• Mounting: VESA 75/100 mm
• Environment: Operating 0°C~35°C; Storage -20°C~60°C; Storage humidity 10%~95% @40°C non-condensing
• Dimensions: 384 × 57 × 345 mm
• Weight: Net 4.5 kg; Gross 5.7 kg
• Certifications: CE (ITE & Medical), FCC (Medical & ITE), UL, cUL, TELEC
