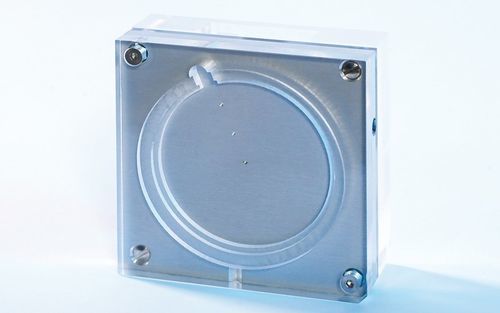

Dental radiography test phantom QUART dent/digitest

for radiographyjawpediatric

Product overview
The QUART dent/digitest M1 and M2 phantoms are extended models designed to evaluate both high-contrast and low-contrast performance of dental X‑ray systems. They are intended for use by dental equipment manufacturers, service engineers and medical physicists for image quality assessment, acceptance testing and routine QC.

Versions / Article numbers

• M1 version - Art. 12108
• M2 version - Art. 12109

Key parameters

• Enhanced spatial (line-pair) resolution
• Low-contrast resolution elements
• Radiation field alignment
• Image homogeneity / uniformity
• Dose equivalent value
• Detection of artefacts and image flaws

Technical specifications

• Internal filtration: 6.0 mm aluminium (standard compliant)
• Low-contrast resolution: 6 objects (Ø 2.5 / 2 / 1.5 / 1 / 0.75 / 0.5 mm)
• Contrast detail: integrated low-contrast wedge to determine perceptibility limit
• Wedge location: between line-pair resolution pattern and low-contrast objects
• Limiting contrast detail: visibility test similar to IQF / contrast-detail curve
• High-contrast resolution (by version): M1: 4 / 5 / 5.5 / 6 / 7 / 8 / 9 Lp/mm (45° / 0.05 Pb) — recommended for panoramic/cephalometric systems; M2: 10 / 12 / 14 / 16 / 18 / 20 Lp/mm (45° / 0.05 Pb) — recommended for intra-oral systems
• Slots: for digital storage phosphor plates, intra-oral sensors and dose detectors
• Centering: 3 centring rings to fit a range of tube diameters
• Size: 80 x 80 x 3.6 mm (L x W x H)

Applications

• Quality control and acceptance testing of dental X‑ray devices
• Routine performance checks during production or servicing
• Comparative imaging and development of acquisition protocols
