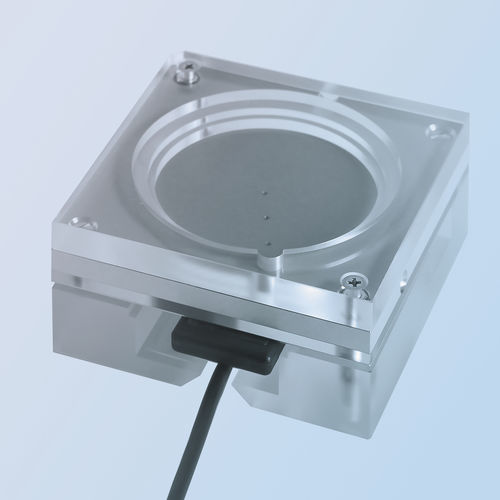

Dental radiography test phantom QUART dent/digitest 2.1

general purposehead

The QUART dent/digitest line of phantoms is designed to be used for QA/QC acceptance and routine testing in digital dental x-ray applications ranging from intra-oral, panoramic and cephalometric equipment. The phantoms comply with IEC 61223-3-4 and IEC 61223-2-7, DIN 6868-151 and DIN 6868-5 as well as IPEM, ÖNORM, PN-EN standards and AFSSAPS regulations. Phantoms feature notch for optional customised dent/digi H OPG holder. Separable design allows use for all dental modalities. Features slit to slide out intra-oral sensor without pulling the cable. Also enables secure sensor cable routing. 2-point fitting for variety of cephalometric systems. Technical specifications INTERNAL FILTRATION: 6.0 mm standard compliant aluminium filtration LOW-CONTRAST RESOLUTION: 4 objects (Ø 2.5/2/1.5/1 mm) HIGH-CONTRAST RESOLUTION: Line pair bar pattern (2.5/2.8/3.1/5.0/5.8/6.3 Lp/mm; 0.05 Pb / 45°) SLOTS: for digital storage screen, intra-oral sensor, dose detector CENTER: 3 centring rings to fit variety of tube diameters SIZE: 80 x 80 x 3.6 mm (L x W x H) Parameter Spatial Resolution Low-Contrast Resolution Radiation Field Alignment Image Homogeneity / Uniformity Dose Equivalent Values Artefacts, Image Flaws, etc.
