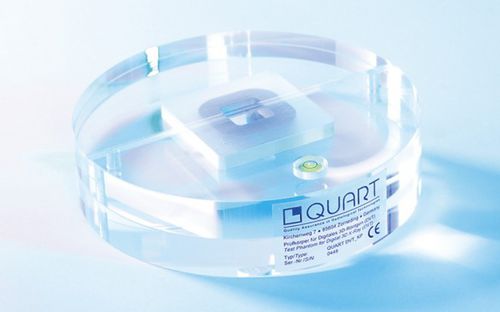

Dental radiography test phantom QUART DVTkp

for CT scangeneral purpose

The QUART DVTkp phantom is designed to be used for routine QA/QC within the full range of Cone-Beam CT (CBCT), Dental Volume Tomography (DVT) and 3D imaging equipment. The phantom fully complies with DIN 6868-15 for CBCT constancy tests. Contrary to DVTap used for acceptance tests, the DVTkp combined with DVTpro is designed for straight forward application in CBCT routine or constancy tests Only one exposure is required to create 3D data set containing all required parameters to evaluate image quality. Automated image quality evaluation is performed through the unique QUART QA/QC software. The DVTkp phantom can be applied for field sizes from 4x4cm to large fields-of-view (FOV). Customised holders for a variety of CBCT systems are available. Technical specifications SPATIAL RESOLUTION: Line spread function STANDARD TEST OBJECTS: PMMA / Air / PVC MATERIAL EQUIVALENTS: Free Air / Soft tissue / Bone POSTIONING TOOLS: Linear (top side) / Selective markers SIZE: Ø 16 cm, height: 15 cm Parameters Nyquist Frequency (NF) Contrast-to-Noise Ratio (CNR) Homogeneity / Image Uniformity Modulation Transfer Function (MTF) at 10 % and 50 % Artefacts, Image Flaws Patient/Phantom Positioning Accuracy
