Aluminium operating table clamp 10-301

Overview

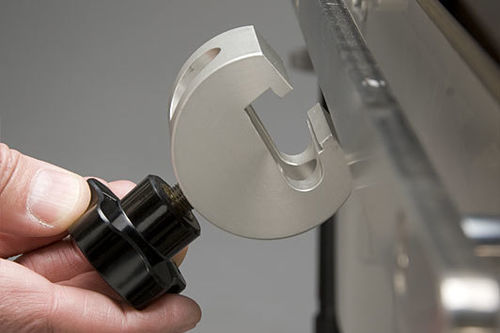

The 10-301 hook-on accessory clamp is a mounting clamp engineered to secure accessories such as Reison side supports and shoulder supports to the side-rail of an operating table. It is manufactured from anodized aluminium and supplied in dedicated variants compatible with EU, UK and US side-rail profiles.

Features

• Hook-on mounting for quick attachment to operating table side-rail.
• Compatible with Reison side supports and shoulder supports.
• Anodized aluminium construction for corrosion resistance and long service life.
• Available in EU, UK and US versions (select part number for compatibility).

Product identifiers and dimensions

• Part Number EU: 10-301
• Part Number UK: 10-301-UK
• Part Number US: 10-301-US
• Length: 80 mm
• Width: 50 mm
• Height: 60 mm
• Weight: 0.3 kg

Technical specifications

• SWL (Safe Working Load): 20 kg
• Material: anodized aluminium
• Mounting type: hook-on to operating table side-rail
