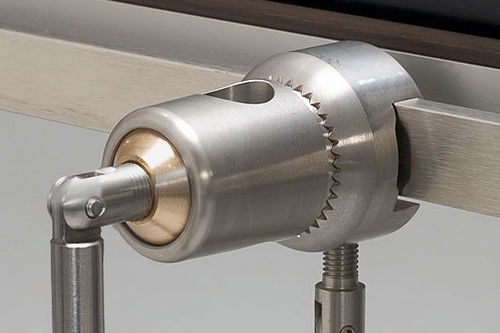

Stainless steel operating table clamp 10-304

Overview
Radial, rotatable clamp designed to securely mount accessories with diameters from Ø16 mm to Ø20 mm on surgical tables. Hook-on type compatible with European standard accessory rails.

Design and operation

• Separate locking mechanism for the rail
• Rotation lock operated by a key handle
• Hook-on attachment compatible with European standard rails
• Variant 10-304-P for poles with one or two flat surfaces
• For US and UK accessory side rails see part number 10-308

Technical specifications

• Part Number EU: 10-304
• Length: 115 mm
• Width: 55 mm
• Height: 150 mm
• Weight: 0.7 kg
• SWL: 25 kg
• Material: Stainless steel, Aluminum, Brass
