Stainless steel operating table clamp 10-305
Add to favorites
Compare this product
Characteristics
- Material
- stainless steel
Description
Product overview

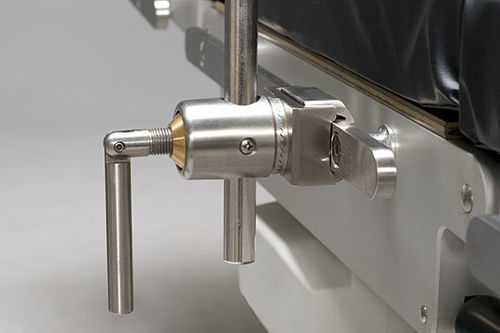

The Radial clamp hook-on 10-305 is designed to mount accessories to round poles and standard siderails in clinical environments. It fits a 20 mm round pole and can be locked down to a diameter of 16 mm. The clamp provides a reliable mechanical interface for monitors, trays and other medical accessories.
Compatibility & variants
Technical specifications
The Radial clamp hook-on 10-305 is designed to mount accessories to round poles and standard siderails in clinical environments. It fits a 20 mm round pole and can be locked down to a diameter of 16 mm. The clamp provides a reliable mechanical interface for monitors, trays and other medical accessories.
Compatibility & variants
- Compatible with European standard rails (25×10 mm)
- Available variants for US and UK siderails
- Variant with flat pushing plunge for accessories with one or two flat surfaces (item name: 10-305-P)
Technical specifications
- Part Number EU: 10-305
- Part Number UK: 10-305-UK
- Part Number US: 10-305-US
- Length: 115 mm
- Width: 60 mm
- Height: 40 mm
- Weight: 0.8 kg
- Safe Working Load (SWL): 25 kg
- Material: Stainless steel, Aluminum, Brass
