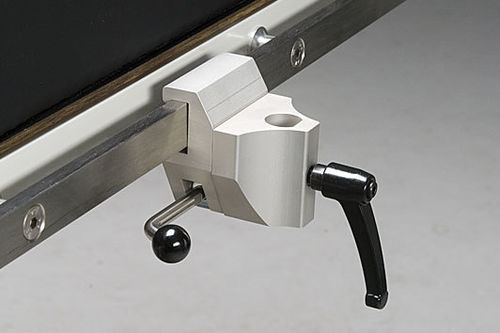

Stainless steel operating table clamp 10018

Reison accessory clamp designed for armboards without spacer. It features a hook-on mounting for fast, tool-free installation and remains compatible with older Reison armboards.

Key points

• Hook-on mounting: hooks onto the side-rail of the operating table for quick attachment.
• Compatible with older Reison armboards.
• Available alternatives: also offered with a 10 mm or 30 mm spacer to adapt to different surgical setups.

Technical specifications

• Part Number EU: 10018
• Part Number UK: 10018-UK
• Part Number US: 10018-US
• Length: 110 mm
• Width: 65 mm
• Height: 165 mm
• Height adjustment: 80 mm (folded lever) - 165 mm (with lever)
• Weight: 0.6 kg
• Material: Stainless steel, Aluminum
