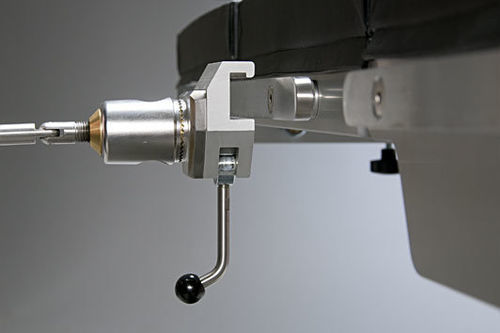

Stainless steel operating table clamp 10-307

Overview
Rotatable hook-on clamp for operating tables, intended to mount lighter and shorter accessories that extend from the table. Features a separate locking lever. Not to be used with leg holders.

Compatibility and usage

• Designed to securely clamp accessories with diameters from Ø16 mm to Ø20 mm.
• Also compatible with poles of 18–20 mm diameter that have a flat surface (specific flat-surface versions exist).
• Available in versions for different siderails (including US and UK variants) and supplied either as separate items or as included accessories with certain armboards.
• Not suitable for use with leg holders.

Technical specifications

• Part Number EU: 10-307
• Part Number UK: 10-307-UK
• Part Number US: 10-307-US
• Length: 125 mm
• Width: 65 mm
• Height: 155 mm
• Weight: 1.1 kg
