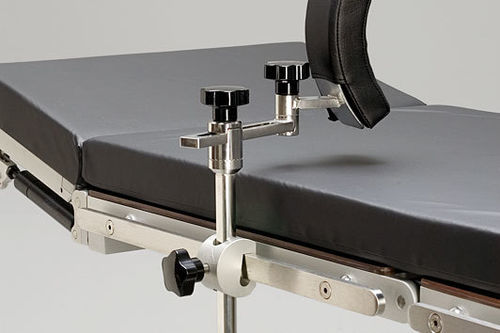

Positioning lateral support 10-360

for operating tablesheight-adjustableadjustable

Function
The lateral support curved short is designed to stabilise and support patients during surgical procedures, maintaining position and minimising unwanted movement.

Overview

• Rotatable with horizontal-angle adjustment.
• Height adjustable via the post.
• Curved cushion dimensions: 180 x 85 mm.
• Post length: 350 mm. Clamps are not included and must be ordered separately.

Accessories

• Recommended clamps: 10-301, 10-301-US, 10-301-UK, 10-302-P

Technical specifications

• Part Number EU: 10-360
• Length: 325 mm
• Width: 85 mm
• Curved cushion dimensions: 180 x 85 mm
• Post length: 350 mm
• Height: 590 mm
• Weight: 2.1 kg
• Safe Working Load (SWL): 35 kg
• Material: Stainless steel, Fabric
• Adjustable: Horizontal angle adjustable; height adjustable by post; rotatable
