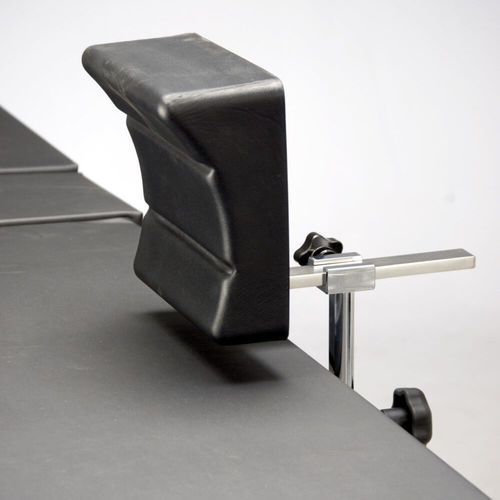

Positioning lateral support 10-565

for operating tablesfoamstainless steel

The lateral surgical support Curved Wide provides reliable support for patients during surgical procedures and helps ensure the patient remains securely positioned on the operating table. It features height adjustment and can be positioned longitudinally and laterally to accommodate patient anatomy and surgical access.

Accessories

• Recommended clamp: 10-301, 10-301-UK, 10-301-US, 10-302-P (clamps ordered separately)

Features / technical specifications

• Length (overall): 230 mm
• Width: 205 mm
• Height: 530 mm
• Weight: 2.5 kg
• SWL (Safe Working Load): 25 kg
• Material: Stainless steel, polyurethane foam
• Curved cushion size: 200×200 mm
• Post length: 350 mm
