Support cushion 10-368lateral positioningpositioningfor operating tables
Add to favorites
Compare this product
Characteristics
- Type
- support, lateral positioning, positioning
- Applications
- for operating tables
- Material
- polyurethane, foam
Description
Product description

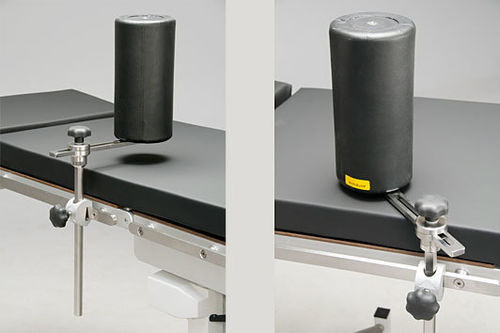

The vertical supporting cushion provides secure, adjustable vertical support to keep the patient position fixed during surgical procedures, particularly when the operating table is laterally tilted. It features an adjustable-angle gear mechanism for fine positioning. Supplied without clamps (clamps ordered separately).
Accessories
Technical specifications
The vertical supporting cushion provides secure, adjustable vertical support to keep the patient position fixed during surgical procedures, particularly when the operating table is laterally tilted. It features an adjustable-angle gear mechanism for fine positioning. Supplied without clamps (clamps ordered separately).
Accessories
- Recommended clamps: 10-301, 10-301-US, 10-301-UK, 10-302-P
- Roll specifications:
- Diameter: 135 mm
- Length: 270 mm
- Length of post: 350 mm
Technical specifications
- Part no: 10-368
- Length: 250 mm
- Width: 135 mm
- Height: 500 mm
- Weight: 1.9 kg
- SWL (Safe Working Load): 40 kg
- Material: Stainless steel, Polyurethane Foam
