Arthroscopy knee support 10-353 series

positioningstainless steel

Product overview:

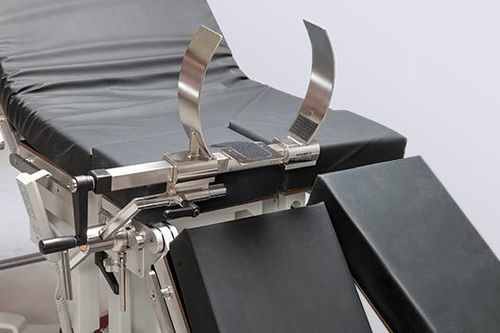

This knee arthroscopy holder is designed to securely support a patient's leg during knee procedures, providing controlled positioning and alignment throughout the operation. It includes three cushions and a crank-operated adjustment mechanism that allows precise control of both height and angle. Clamps are not included and must be ordered separately.

Versions:

• 10-353: V-pole, with cushions
• 10-353-US: Round pole, without cushions
• 10-353-18: 18 mm round pole, with cushions
• 10-353-18-B: 18 mm plane pole, with cushions

Accessories (recommended):

• Recommended clamps: 10-304, 10-305, 10-305-UK, 10-305-US, 10-308

Technical specifications:

• Part Number EU: 10-353
• Length: 450 mm
• Length adjustment: 140–360 mm
• Width: 135 mm
• Height: 260 mm
• Weight: 4.3 kg
• SWL (Safe Working Load): 40 kg
• Material: Stainless steel, Brass, Fabric
