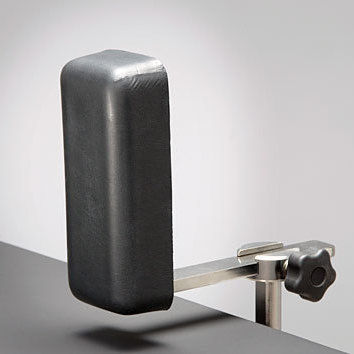

Operating table lateral support 10-566

positioningstainless steelfoam

Description
The Lateral Support narrow is a surgical lateral support designed to provide reliable lateral stabilization to keep the patient securely positioned during operations. It is adjustable and supplied with two cushion models to accommodate different patient anatomies.

Key features

• Adjustable lateral support for secure patient positioning during procedures.
• Includes two cushions: one flat cushion and one multifunctional curved cushion. The curved cushion is reversible to match the patient’s curvature.
• Clamps are ordered separately (not included).
• Post length: 350 mm; Plate size: 175×70 mm.

Accessories

• Recommended clamps: 10-301, 10-301-UK, 10-301-US, 10-302-P.

Technical specifications

• Length: 280 mm
• Width: 80 mm
• Height: 520 mm
• Weight: 1.8 kg
• SWL: 25 kg
• Material: Stainless steel, Polyurethane foam
