3D dental scanner AnySCAN mini

for dental laboratoriesfor dental clinicsfor dental prostheses

Description

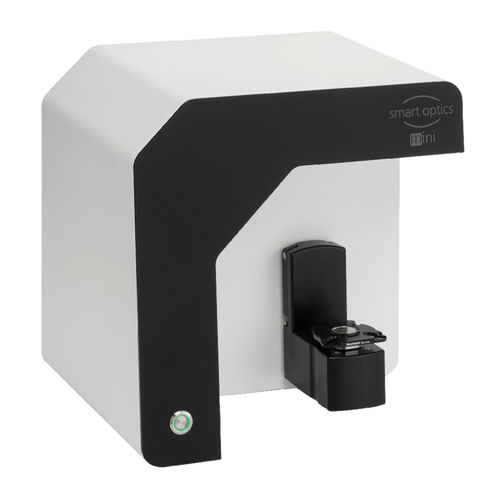

The AnySCAN mini by smart optics is a fully automatic 3D dental scanner designed for dental laboratories and practices that require compact footprint and ISO-certified precision. It fits both newcomers to CAD/CAM workflows and professionals processing crown and bridge cases, offering open export formats for downstream CAD applications and compatibility with exocad® DentalCAD.

Key features

• Ready-to-use entry-level scanner with professional accuracy (ISO 12836: 6 µm)
• Integrated secondDie module included to speed up multi-die workflows
• Monochrome texture scan for clear digitization of model markings
• Optional accessories: multiDie, Triple Tray® impression scan, multiCase
• Universal mode for scanning non-dental objects up to the measuring field

Technical specifications

• Manufacturer: smart optics
• Model: AnySCAN mini
• Type: Fully automatic 3D dental scanner
• Cameras: 1 (1.6 MP)
• Projectors: 1
• Measuring technology: Stripe light triangulation
• Light source: White light LED
• Accuracy (ISO 12836): 6 µm
• Measurement field (X×Y×Z): 80 × 60 × 85 mm
• Dimensions (W × H × D): 337 × 347 × 322 mm
• Weight: 9.5 kg
• Connections: 1 × USB, 1 × Power
• Power supply: 100 - 240 VAC, 50/60 Hz
• Output formats: PLY, STL
• Throughput examples: Complete jaw total 29 s; Single tooth total 42 s; 3-unit bridge total 56 s
• Included software/modules: secondDie (included); optional: multiDie, multiCase, Triple Tray®
• Order numbers: 58411000 (without peripherals); 43411000 (including PC, mouse, keyboard and Exocad with virtual articulator)
