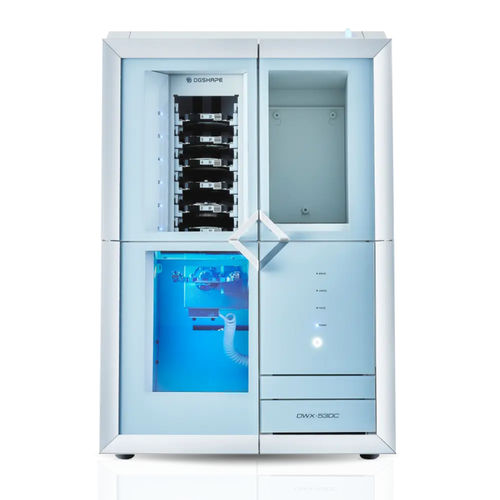

CAD/CAM milling machine AnyCAM 53DC

for dental prosthesesfor dental laboratoriesdental

Description
AnyCAM 53DC – Roland DGSHAPE DWX-53DC automation delivered and supported by REITEL. Based on the DGSHAPE DWX-53DC platform, the AnyCAM 53DC is a fully automated 5-axis dry milling machine designed for high-volume dental production. It integrates a 6-position disc changer, a 15-tool automatic magazine and DGSHAPE CLOUD for remote monitoring and job tracking. REITEL provides configuration, on-site setup and application training to enable immediate production capacity.

Key Features

• Roland DGSHAPE DWX-53DC technology distributed by REITEL
• Fully automated disc and tool changing (6-position disc changer, 15-tool magazine)
• Remote monitoring and job tracking via DGSHAPE CLOUD
• Suitable for zirconia, PMMA, CoCr, wax, PEEK, PEKK, gypsum, fiber-reinforced resins and polycarbonate
• Engineered for continuous, high-volume laboratory production

All-in-One Solution

• MILLBOX ECO milling software optimized for DGSHAPE
• Preconfigured PC included, ready to operate
• On-site installation, configuration and application training
• REITEL expert service and technical support

Accessories
DUSTY ZIRKON (related accessory)

Technical specifications

• Axes: 5-axis simultaneous (B-axis: ±35°)
• Materials: Zirconia, PMMA, Wax, Composite resins, PEEK, PEKK, Gypsum, Fiber-reinforced resin, CoCr sintered metal, Polycarbonate
• Disc changer: 6-position automatic disc changer
• Tool changer: 15 positions
• Spindle speed: Up to 60,000 RPM
• Calibration: Automatic with temperature sensor for high precision
• Cleaning system: Removes up to 99% of dust and residues
• Monitoring: Integrated camera and DGSHAPE CLOUD for remote diagnostics and job tracking
• Software: Open CAD/CAM system compatible with major dental software
• Operation: Dry milling with automated material changing
