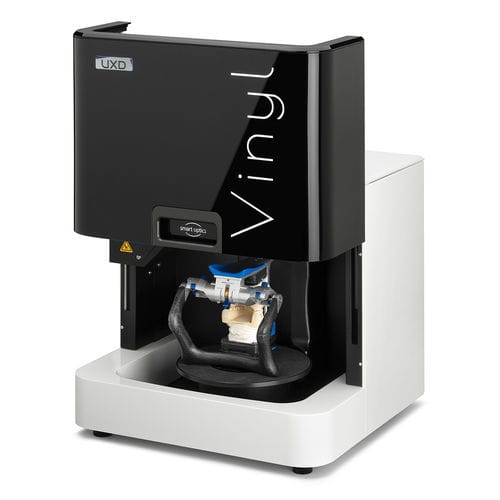

3D dental scanner AnySCAN VINYL UXD

for dental laboratoriesfor dental prosthesesbenchtop

Description The Vinyl series was expanded in 2022 with the AnySCAN VINYL UXD. Two high-resolution cameras and an advanced 3D sensor provide optimal data acquisition. The user can select between four modes to define camera count and resolution, enabling either full high-resolution scans or reduced datasets for faster processing. The UX module (two additional cameras and a projector) projects icons onto the system plate so workflow elements can be selected or scans started via hand gestures, operating almost independently of the PC. The scan sequence is freely selectable: upper jaw, lower jaw, articulator or other objects. Interior-space monitoring with AI-controlled Z-axis automatically aligns objects in height to ensure optimal scanning results.

Technical features

• State-of-the-art 3D sensor unit
• UX module for gesture control and assistant projections
• Enlarged articulator system plate
• AI-controlled Z-axis
• Rapid motor control
• HR and LR mode
• Selective camera mode
• Power supply: 100 – 240 VAC, 50/60 Hz
• Measurement time complete jaw: Scanning: 12 sec., Matching: 10 sec., Total: 22 sec.
• Measurement time single tooth: Scanning: 25 sec., Matching: 6 sec., Total: 31 sec.
• Measurement time 3-unit bridge: Scanning: 40 sec., Matching: 15 sec., Total: 55 sec.
• Connections: 1x USB 3.0, 1x power
• Size (W x H x D): 430 / 455 / 420 mm
• Cameras: 4
• Camera pixels: 2x 3.2 MP, 2x 1.0 MP
• Measuring field camera 1 (x / y / z): 80 / 60 / 82 mm
• Measuring field camera 2 (x / y / z): 88 / 63 / 82 mm
• Accuracy (acc. ISO 12836): 4 µm
• Weight: 25 kg
• Order-No.: 58440000

Technical specifications

• Product family: Vinyl series
• Model: AnySCAN VINYL UXD
• Sensors: 3D sensor unit plus multiple cameras
• Cameras total: 4 (2 high-resolution + 2 additional in UX module)
• Camera resolution: 2 × 3.2 MP, 2 × 1.0 MP
• Measuring fields: Camera 1: 80 × 60 × 82 mm; Camera 2: 88 × 63 × 82 mm
• Accuracy (ISO 12836): 4 µm
• Measurement times: complete jaw 22 s (scan 12 s + match 10 s); single tooth 31 s (scan 25 s + match 6 s); 3-unit bridge 55 s (scan 40 s + match 15 s)
• Power: 100–240 VAC, 50/60 Hz
• Connections: USB 3.0, power
• Dimensions (W×H×D): 430 × 455 × 420 mm
• Weight: 25 kg
• Order number: 58440000
