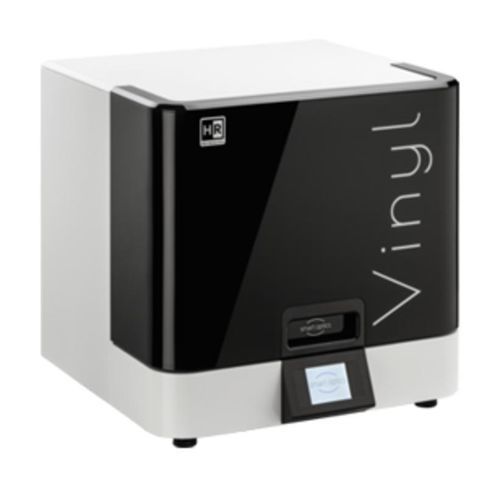

Dental laboratory 3D scanner AnySCAN VINYL HR

dentalbenchtopstructured light

Description
The AnySCAN VINYL HR is a dental desktop 3D scanner engineered for dental laboratories that require controlled trade-offs between detail density and throughput. The selectable High-Resolution mode enables technicians to choose higher-detail captures for complex restorations or faster scans for routine cases. With repeat accuracy up to 4 μm (DIN ISO 12836) and a high-performance camera with Blue-Light LED, the device provides excellent global and fine-detail accuracy. The fully automated Z-axis positions the scan object automatically, reducing manual setup. All scan modules are included, allowing project-specific workflows such as condyle-related articulator scans, multiDie, Triple Tray® and secondDie scans. Texture capture is available in monochrome or color, and the large system plate accepts common articulators with a non-slip rubber mat for stable positioning.

Technical features

• multiCase
• Texture scan monochrome
• Triple Tray® impression scan
• Dental scan
• Fully automated Z-axis
• Universal mode
• Texture scan color
• secondDie and multiDie
• Virtual articulator
• Compatible with exocad® Dental CAD
• Dimension (W × H × D): 455 × 430 × 420 mm
• Weight: 23 kg
• Interfaces: 1× USB, 1× IEC connector
• Power supply: 100-240 VAC, 50/60 Hz
• Measurement field (X × Y × Z): 80 × 60 × 85 mm
• Accuracy (according to ISO 12836): 4 μm
• Resolution: 2.8 (1.4) MP
• Complete jaw: Scanning 18 sec, Matching 17 sec, Total 35 sec
• Single tooth: Scanning 35 sec, Matching 14 sec, Total 49 sec
• 3-unit bridge: Scanning 50 sec, Matching 25 sec, Total 75 sec
• Order-No.: 58430000 (without peripherals)

Characteristics / technical specifications

• Model: AnySCAN VINYL HR
• Intended use: high-resolution dental laboratory scanner (monochrome and color texture, dental scanning)
• Z-axis: fully automated with status display
• Articulator compatibility: Artex®, Baumann®, Gamma®, SAM® (other manufacturers scanned with average values)
• Included/available accessories: multiDie adapter, Triple Tray® impression holder
• Dimensions (W×H×D): 455 × 430 × 420 mm
• Weight: 23 kg
• Interfaces: 1× USB, 1× IEC connector
• Power supply: 100-240 VAC, 50/60 Hz
• Measurement field (X×Y×Z): 80 × 60 × 85 mm
• Repeat accuracy: up to 4 μm (DIN ISO 12836)
• Resolution: 2.8 (1.4) MP
• Typical operation times: complete jaw total 35 sec; single tooth total 49 sec; 3-unit bridge total 75 sec
• Order number: 58430000 (without peripherals)
