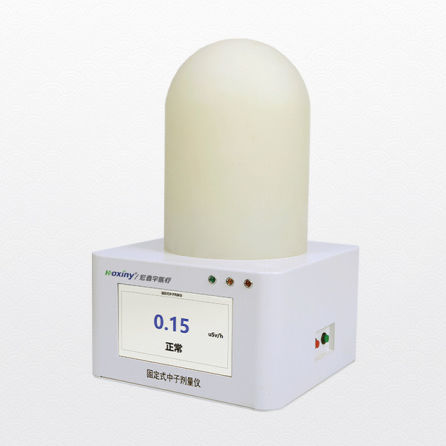

Neutron rays area dosimeter

Product Introduction
Real-time monitoring of neutron radiation dose levels in environmental locations, providing on-site display of measurement data and alarm prompts, and independent setting of alarm thresholds.

Product Performance

• High-sensitivity He-3 detector.
• Large touch display (≥7-inch) with clear measurement and status indicators.
• Innovative moderating (slowing-down) structure to improve detection efficiency.
• Output for dose-chain control signal.
• Built-in audible alarm (buzzer) and status indicator light.
• Configurable high and low alarm thresholds.

Technical Parameters
Detector: He-3 neutron detector
Response time: ≤2 s
Relative error: ≤±20%
Sensitivity: >1.5 CPS/μSv/h
Measurement range: 0.01 μSv/h – 10 mSv/h
Energy range: 0.025 eV – 14 MeV
Communication: Modbus RS485

Application Fields

• Department of Radiology: Imaging diagnosis and interventional therapy using X-rays, gamma rays and other radiation to obtain images for evaluating anatomy, function and pathological lesions.
• Department of Radiation Oncology: Localized therapeutic modality using ionizing radiation (alpha, beta and gamma rays, X-rays, electron or proton beams) for cancer treatment.
• Department of Nuclear Medicine: Uses nuclear techniques for diagnosis and treatment, combining imaging, therapy, research and teaching.

Technical Specifications

• Detector: He-3 neutron detector
• Response time: ≤2 s
• Relative error: ≤±20%
• Sensitivity: >1.5 CPS/μSv/h
• Measurement range: 0.01 μSv/h – 10 mSv/h
• Energy range: 0.025 eV – 14 MeV
• Display: ≥7-inch touch screen
• Alarm: Built-in buzzer and status indicator light
• Alarm thresholds: Configurable high and low settings
• Output: Dose chain control signal
• Communication: Modbus RS485
