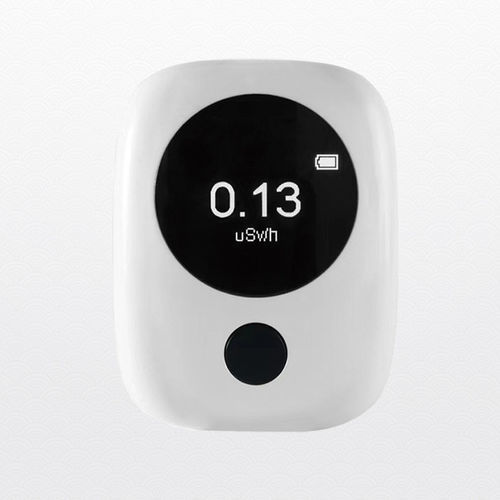

X-ray personal dosimeter

Alpha rayBeta rayGamma ray

Product overview
Personal alarm dosimeters are designed for medical personnel working with ionizing radiation. The device provides real-time dose rate monitoring and alarm notification when preset thresholds are exceeded. Compact and suitable for continuous personal monitoring, with Bluetooth connectivity for data transfer to a mobile phone or compatible application.

Technical parameters

• Detector type: scintillation detector
• Sensitivity: 11 cps / μSv/h
• Range: 0.01 μSv/h - 100 mSv/h
• Response time: <8 s
• Relative inherent error: ≤ ±20%
• Size: 60 mm x 46 mm x 20 mm
• Communication: Bluetooth connection to mobile phone

Application fields

• Department of Radiology: The Department of Radiology is a comprehensive unit integrating diagnostic imaging and interventional procedures. Radiological diagnosis uses X-rays, gamma rays and other ionizing radiation to produce images of internal structures on detectors or films, enabling assessment of anatomy, physiological function and pathological lesions.
• Department of Radiation Oncology: Radiation oncology uses localized ionizing radiation for cancer treatment. Sources include alpha, beta and gamma emissions from radioisotopes, as well as X-rays, electron beams and particle beams produced by therapy units and medical accelerators.
• Department of Nuclear Medicine: This department applies nuclear techniques for diagnosis and therapy. Combining imaging, therapeutic services, research and teaching, it is a core modality in modern clinical practice.

Key features

• Real-time dose rate monitoring with alarm function
• High-sensitivity scintillation detector
• Wide measurement range suitable for clinical environments
• Fast response time (<8 s) for prompt detection
• Compact dimensions for wearable personal monitoring
• Bluetooth connectivity for data logging and remote review
