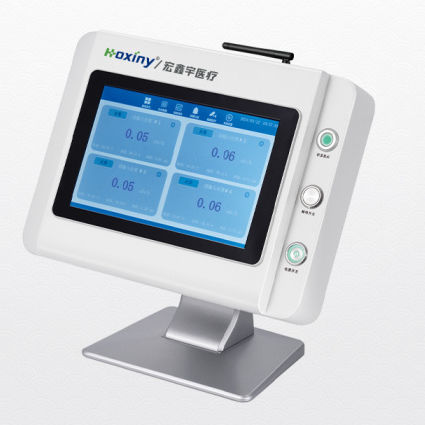

Central monitoring station D10

Category
Nuclear Medical Instruments

Key words
D10 type online host

Product Performance

• Display Screen: ≥10-inch capacitive touch screen, resolution 1280×800.
• Display Content: Centralized display of measured data, operating status and installation location for all detectors.
• Location Editing: Supports custom input (including Chinese) to name each detector's installation position.
• Threshold Configuration: Independent high and low alarm thresholds per detector.
• Historical Data: Detector historical data available for review and export via local U-disk.
• Alarm Log: Query access to all historical over-threshold alarm records.
• Data Curve: Real-time review of historical trend curves of measured data.
• Communication Interface: Supports RS485, TCP/IP and wireless communication modes.
• Video Surveillance: Integrates multiple IP cameras for synchronized monitoring of radiation data and site images; sample images available for function verification.
• Upgrade & Maintenance: Supports remote online system upgrades and equipment maintenance.
• Data Export: Historical data exportable remotely via network or locally via U-disk.
• Alarm Function: Audible and visual alerts when measured values exceed preset thresholds.
• Power Supply: DC 24V, 2A.

Application Fields

• Department of Radiology: Integrates imaging diagnostics and interventional therapy using X-rays, gamma rays and other ionizing radiation to image internal structures for diagnostic evaluation.
• Department of Radiation Oncology: Uses ionizing radiation (X-rays, electron beams, proton beams, particle beams) for localized cancer treatment.
• Department of Nuclear Medicine: Applies nuclear technologies for diagnosis and therapy; integrates imaging, therapeutic services, research and teaching.

Remarks
Provides centralized online monitoring of detectors, supports alarm threshold configuration and historical data management, and can integrate camera monitoring for synchronized on-site visualization.

Technical Specifications

• Display: ≥10-inch capacitive touch screen, 1280×800 resolution.
• Measured data display: Centralized view for all detectors (values, status, installation positions).
• Custom naming: Supports custom input for detector installation locations.
• Alarm thresholds: Independent high/low dual thresholds per detector.
• Alarm indications: Audible and visual alarms on threshold exceedance.
• Data logging: Historical alarm logs and detector data available for query.
• Data export: Local (U-disk) and remote (network) export supported.
• Data visualization: Real-time and historical trend curves.
• Communication: RS485, TCP/IP, wireless.
• Video integration: Supports multiple IP cameras for synchronized monitoring.
• Maintenance: Remote online upgrades and maintenance supported.
• Power supply: DC 24V, 2A.
