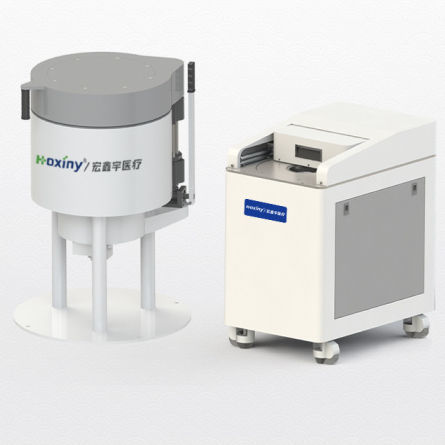

Gamma ray spectrometer for PETfor nuclear medicinefor radiopharmacy
Add to favorites
Compare this product
Characteristics
- Type
- gamma ray
- Applications
- for PET, for nuclear medicine, for radiopharmacy, diagnostic, for research
- Detector type
- PMT
- Configuration
- benchtop
- Other characteristics
- with USB port
Description
Key Features
Technical Specifications
Application Fields
Detailed Specifications
- Single USB connection for both power and data communication, simplifying installation and cabling.
- Guided operation workflow with on-screen prompts to complete activity measurement of samples.
- Layered lead shielding chamber designed for straightforward installation and maintenance.
- Choice of sliding cover or top-opening door to suit sample handling procedures.
- Equipped with casters for easy relocation within clinical or laboratory environments.
Technical Specifications
- Detector: ≥3”×3” NaI(Tl)
- Energy resolution: ≤7.0% (@661.5 keV, 137Cs)
- Energy range: 30 keV – 3 MeV
- Background count: < 8 cps
- MCA (Multi Channel Analyzer): 1024 channels
- Differential nonlinearity: < 0.05%
- Integral nonlinearity: < 0.10%
- Stability: ≤ ±1.0%
- Measured radionuclides/elements: Ra, Th, K, Rn, Cs, Am
- Measurement uncertainty: < 10% (for radioactivity > 37 Bq/kg)
- Measurement time: 0 – 200000 s (optional)
- External interfaces: support for data transmission and printing
- Operating environment: -20 – 50°C, ≤95% RH
- Lead shielding chamber: wall thickness 100 mm, inner diameter 110 mm
Application Fields
- Department of Radiology: Imaging diagnosis and image-guided interventional procedures using X-rays and gamma rays for anatomical and functional assessment.
- Department of Radiation Oncology: Support for localized radiation therapy QA and verification involving gamma-emitting sources.
- Department of Nuclear Medicine: Quantitative activity measurement for diagnostic radiopharmaceuticals, research and clinical workflow integration.
Detailed Specifications
- Detector type: ≥3”×3” NaI(Tl)
- Energy resolution: ≤7.0% (@661.5 keV, 137Cs)
- Energy range: 30 keV – 3 MeV
- Background count: < 8 cps
- MCA channels: 1024
- Differential nonlinearity: < 0.05%
- Integral nonlinearity: < 0.10%
- Stability: ≤ ±1.0%
- Measured radionuclides/elements: Ra, Th, K, Rn, Cs, Am
- Measurement uncertainty: < 10% (for radioactivity > 37 Bq/kg)
- Measurement time: 0–200000 s (optional)
- External interfaces: data transmission and printing support
- Operating conditions: -20–50°C, ≤95% RH
- Lead shielding chamber: wall thickness 100 mm, inner diameter 110 mm
